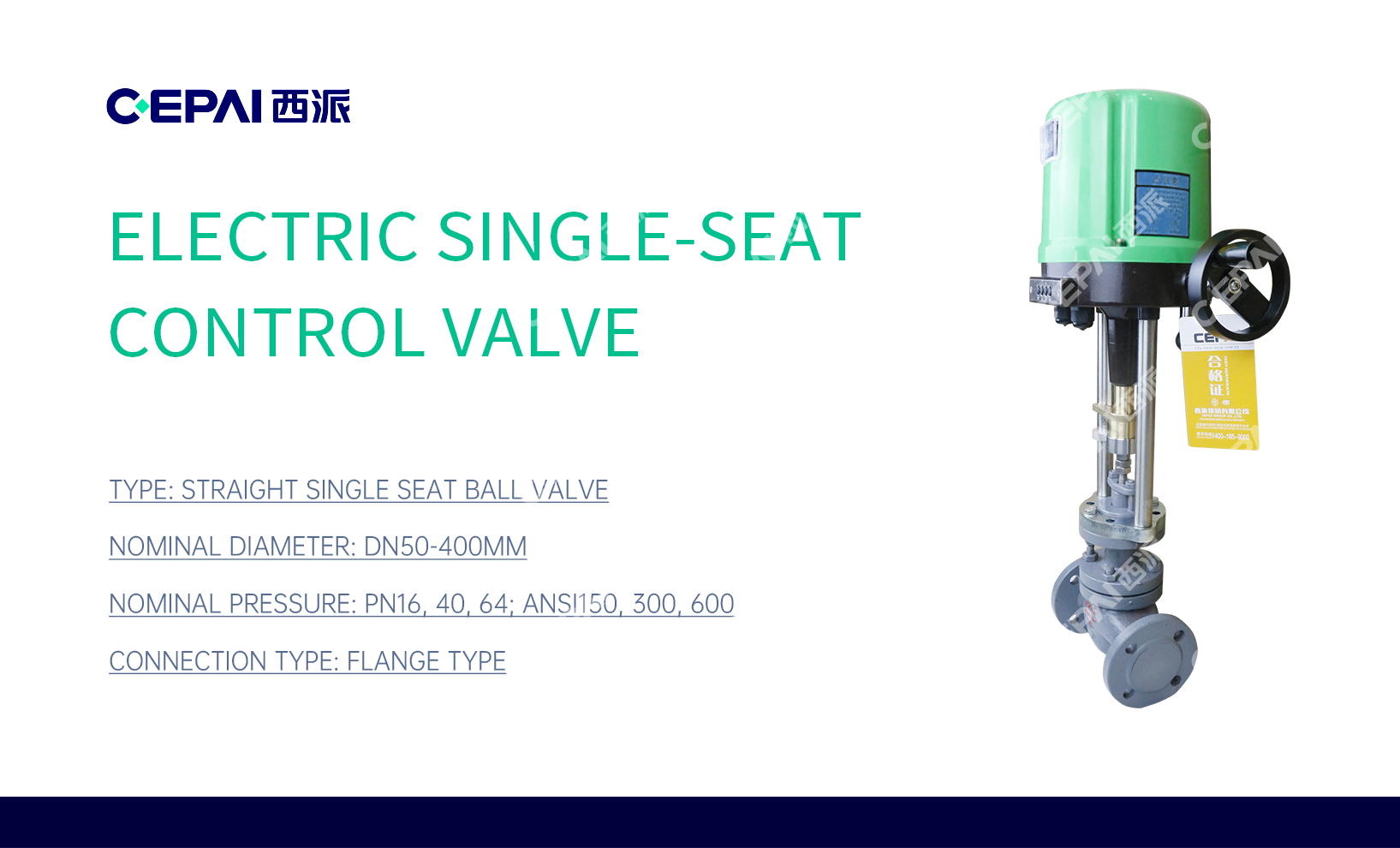

Electric Single-seat Control Valve

2025-06-17

The Electric Single-seat Control Valve is a precision fluid regulation device renowned for its high sealing performance and accurate control, integrating electric actuation with a single-seat structural design. Driven by an electric motor or servo actuator, it enables remote operation and automated adjustment, making it ideal for modern industrial automation systems. The valve features a single-port design where the plug directly aligns with the seat, creating a tight seal that minimizes leakage—often achieving Class IV or higher leakage standards per API 598.

Core Structural Advantages

Tight Sealing: The single-seat configuration ensures direct contact between the plug and seat, enhanced by materials like stainless steel or hard-faced alloys for abrasion resistance. This makes it suitable for applications requiring strict shut-off, such as chemical reactors or steam systems.

Precision Control: Electric actuators provide stable thrust and fine-positioning capabilities, typically with positioners that achieve ±1% accuracy. The valve’s linear flow characteristic allows precise modulation of flow, pressure, or temperature in response to 4-20 mA control signals.

Corrosion Resistance: Internal components can be coated with materials like PTFE or Hastelloy for harsh media, while the valve body is often constructed from carbon steel or stainless steel to withstand high pressures (up to Class 600) and temperatures (-17°C to +230°C).

Operational Efficiency

The valve’s design minimizes flow turbulence and pressure drop, with a high flow coefficient (Cv) with a streamlined flow path. Electric actuation offers advantages over pneumatic systems, including:

Energy Efficiency: Only consumes power during actuation, reducing long-term operational costs.

Reliability: Less susceptible to air supply fluctuations, making it suitable for remote or harsh environments.

Quick Response: switch times typically range from 5-15 seconds, with fail-safe options (e.g., spring return or battery backup) for emergency shutdowns.

Industrial Applications

Chemical Processing: Controls corrosive fluids in polymerization reactors or acid dosing systems.

Power Generation: Regulates steam flow in turbines or boiler feedwater systems.

Food & Beverage: Maintains hygienic standards in pasteurization lines with polished stainless steel finishes.

HVAC: Manages hot water or chilled water flow for temperature control in commercial buildings.

The Electric Single-seat Control Valve balances precision, reliability, and ease of integration, making it a staple in processes where tight sealing and accurate regulation are critical. Its modular design also simplifies maintenance, with replaceable trim kits and actuators that minimize downtime in industrial settings.
