Pneumatic Fluorine Lined Ball Valve: Corrosion-Resistant Guardian in Aggressive Fluid Systems

2025-07-15

In industrial environments where corrosive media dominate, the pneumatic Fluorine Lined Ball Valve stands as a specialized and reliable control device, merging the precision of pneumatic operation with the superior chemical resistance of fluorine lining to ensure safe and efficient fluid management.

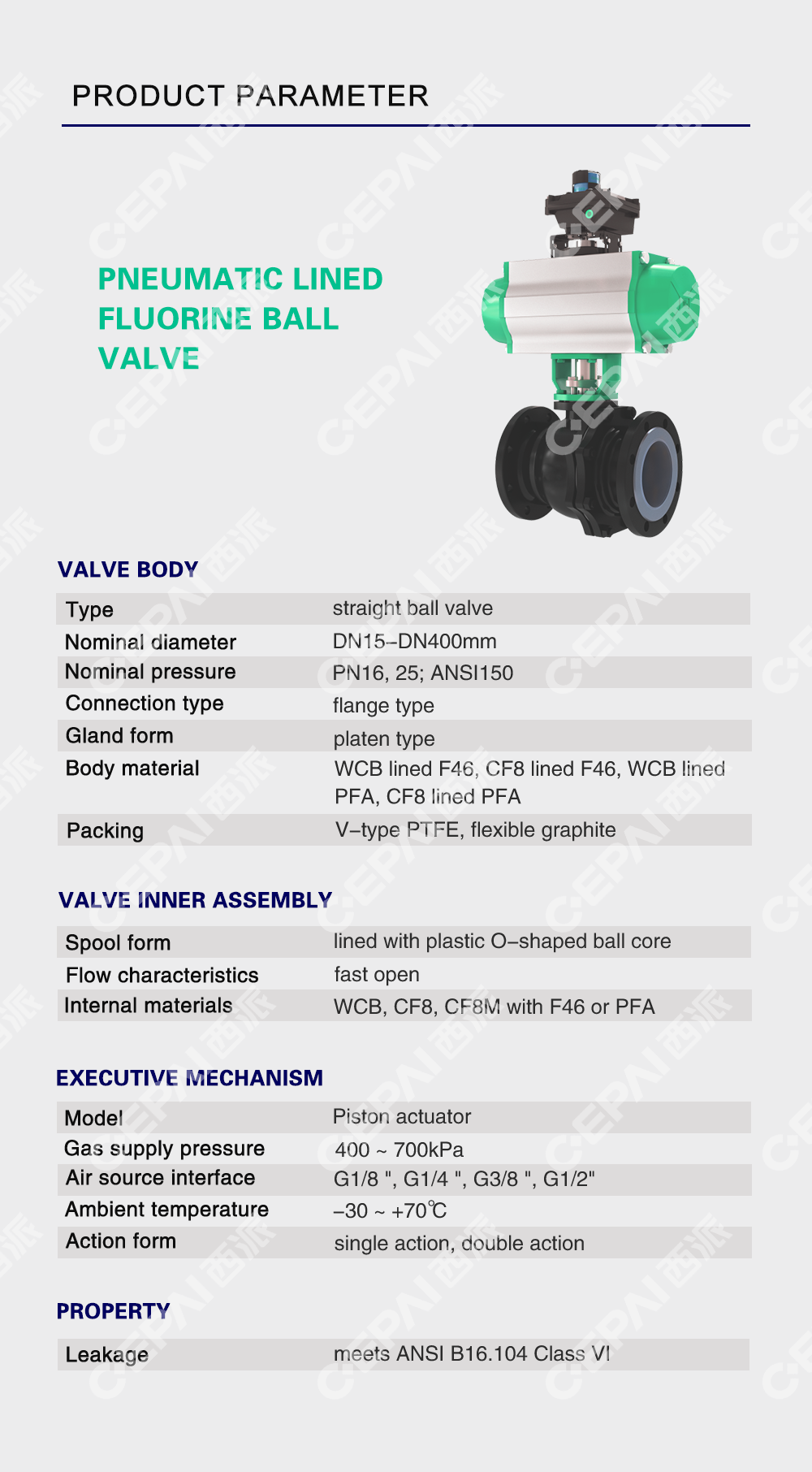

Structurally, the valve comprises a valve body, a fluorine-lined ball (typically coated with PTFE or PFA), a valve stem, a pneumatic actuator, and sealing components. The fluorine lining, applied to the inner surfaces of the valve body, ball, and seats, acts as a robust barrier against corrosive substances, while the pneumatic actuator—driven by compressed air—controls the rotation of the ball via the valve stem. This design ensures that metal components remain isolated from aggressive media, extending the valve’s service life even in harsh conditions.

The working principle is both straightforward and effective. When the pneumatic actuator receives a control signal, it converts air pressure into rotational motion, turning the fluorine-lined ball. A hollow passage through the ball aligns with the pipeline to open the valve, allowing unobstructed flow; rotating the ball 90 degrees closes the passage, pressing the fluorine lining tightly against the seat to form a leak-tight seal. This quick on/off action, combined with the fluorine material’s non-stick properties, minimizes friction and prevents media buildup, ensuring consistent performance.

Pneumatic fluorine lined ball valves are indispensable in industries such as chemical processing, pharmaceutical production, wastewater treatment, and electroplating. They excel in handling strong acids, alkalis, oxidizing agents, and other corrosive fluids that would degrade conventional valves. Whether regulating chemical dosing in a pharmaceutical plant or controlling acid flow in a metal finishing facility, these valves deliver reliable shutoff and precise flow control.

Key advantages include exceptional corrosion resistance, thanks to the inert fluorine lining; rapid response to pneumatic signals, enabling efficient automation; and low maintenance requirements, as the non-reactive surface reduces wear and contamination. Their compact design also makes them easy to install in tight spaces, while compatibility with various control systems enhances operational flexibility.

In essence, the pneumatic fluorine lined ball valve is a critical asset in corrosive fluid handling, offering a perfect blend of durability, precision, and chemical resistance to safeguard industrial processes and ensure operational integrity.
