Product Description:

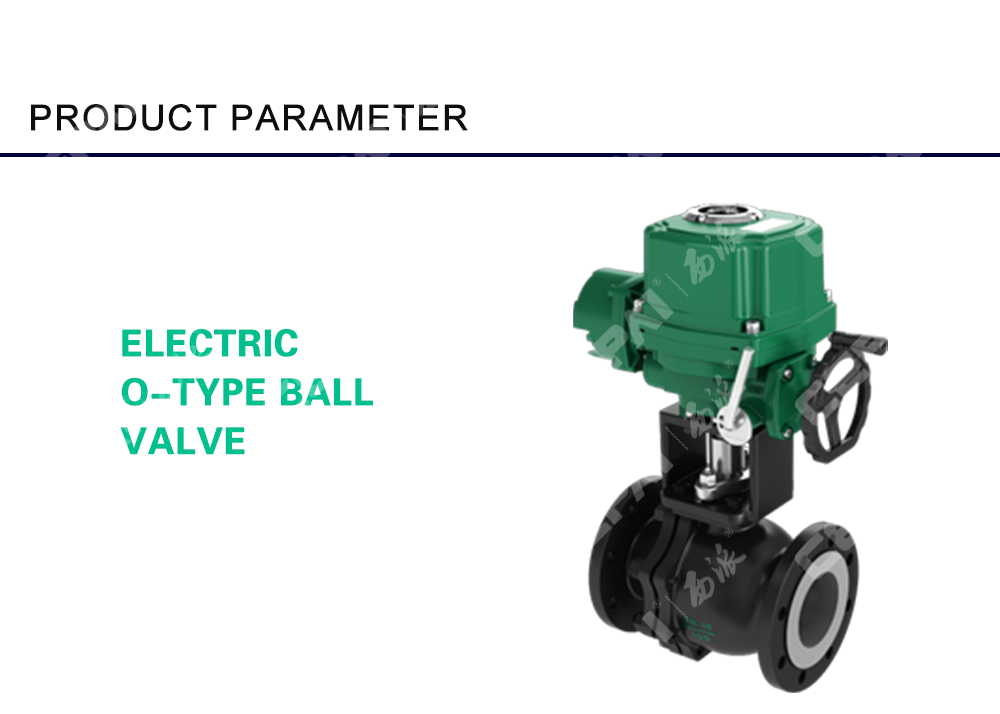

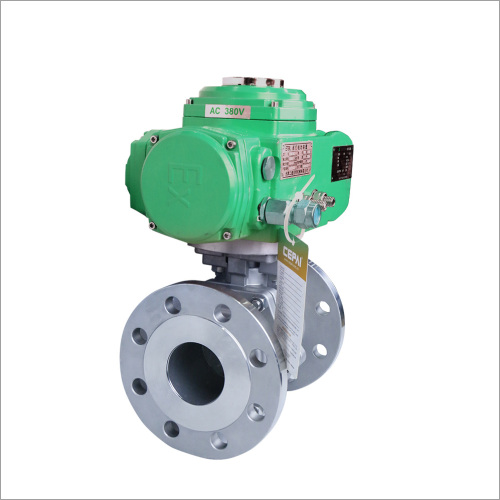

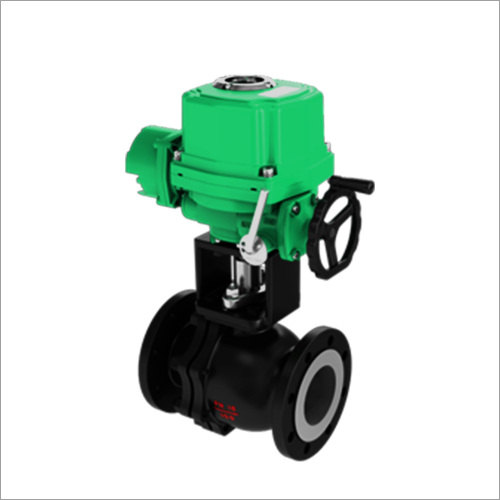

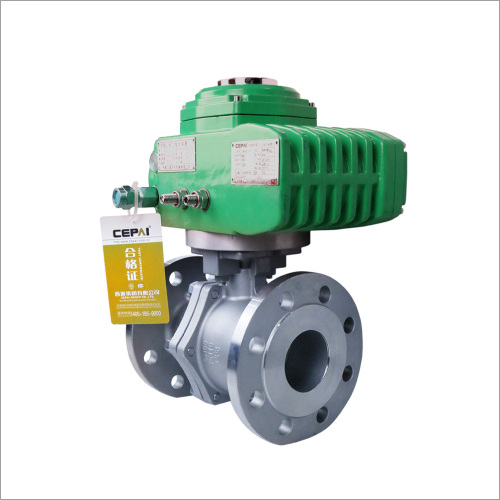

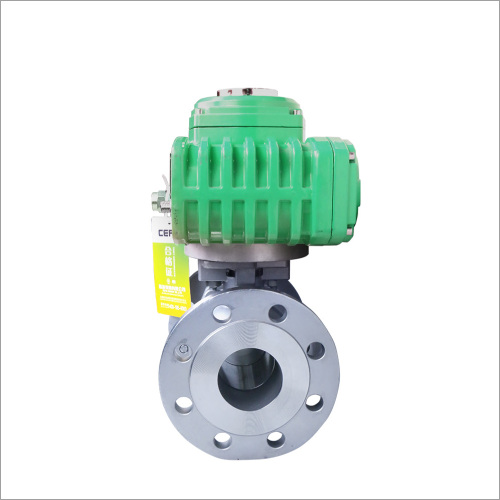

Electric O-type ball valves have the characteristics of durability, fast switching, tight sealing, fluid control, automatic control, safety and reliability, etc., and are widely used in fluid control systems in the industrial field.
Features:
1. Fluid control: The electric O-Type Ball Valve has the function of fluid control, and can control the flow of fluid by adjusting the opening of the valve.
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
| Type | straight ball valve |
| Nominal diameter | DN15-DN400mm |
| Nominal pressure | PN16,25;ANSI150 |
| Connection type | Flange type |
| Gland form | Platen type |
| Body material | WCB lined f46,CF8 lined F46,WCB lined PFA,CF8 lined PFA |
| Packing | V-type PTFE,flexible graphite |
VALVE INNER ASSEMBLY
| Spool form | Lined with plastic O-shaped ball core |
| Flow characteristice | fast open |
| Internal materials | WCB,CF8,CF8M with F46 or PFA |
EXECUTIVE MECHANISM
| Model | Electric actuator |
| Voltage | 220V,380V |
| Ambient temperature | -30~+70℃ |
| Control signal | 4-20mADC(4-20mA signal feedback can be provided according to customer requirements) |
PROPERTY
| Leakage | meets ANSI B16.104 Class Vl |
