Brand: Cepai
Packaging: Box
Transportation: Ocean,Land,Air,Express,others
Port: shanghai,ningbo,huaian
Payment Type: L/C,T/T,D/P

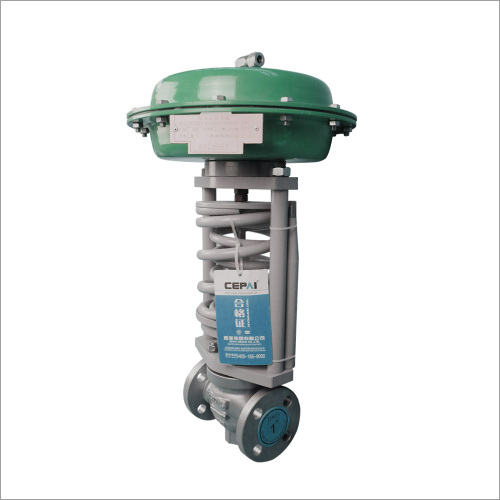

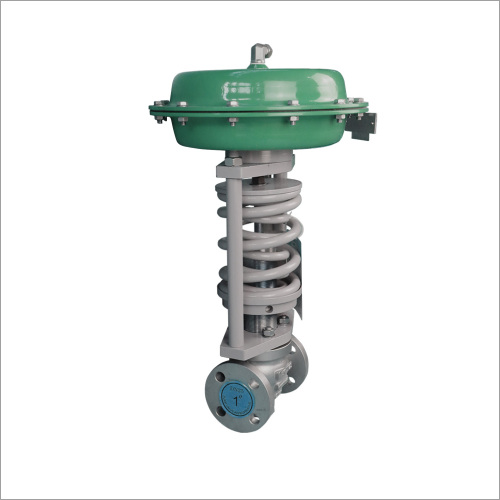

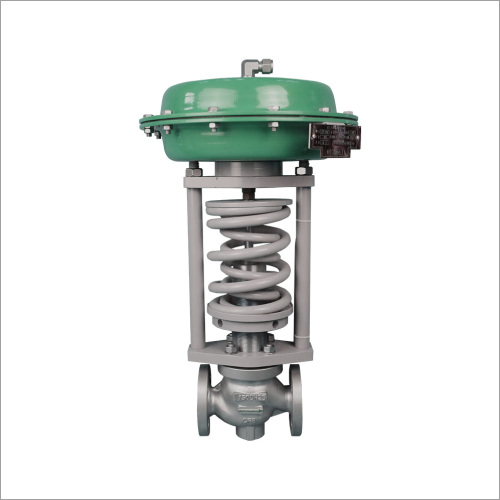

Self-operated regulating valve is a type of valve commonly used in industrial process control systems. It uses its own fluid power to open and close the valve
without the need for an external energy supply.
This valve has the following features:
1. The self-operated regulating valve adopts advanced fluid dynamics principles to drive the opening and closing of the valve through the pressure difference
of the fluid. This design allows the valve to automatically regulate the flow of fluid without the need for an external energy source.
2. The valve has the characteristics of rapid response and can respond to changes in fluid flow in an instant to achieve precise flow control. This characteristic
makes self-operated regulating valves very suitable for applications that require frequent flow adjustments.
3. The self-operated regulating valve has good fluid control performance and can stably control the flow and pressure of the fluid. Its structural design enables
the fluid to maintain a smooth flow state when passing through the valve, reducing the pressure loss of the fluid.
In short, the self-operated regulating valve is a high-performance valve that can control the flow and pressure of fluid stably and accurately. It is widely used in
industrial process control systems and provides reliable support for process control.
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.

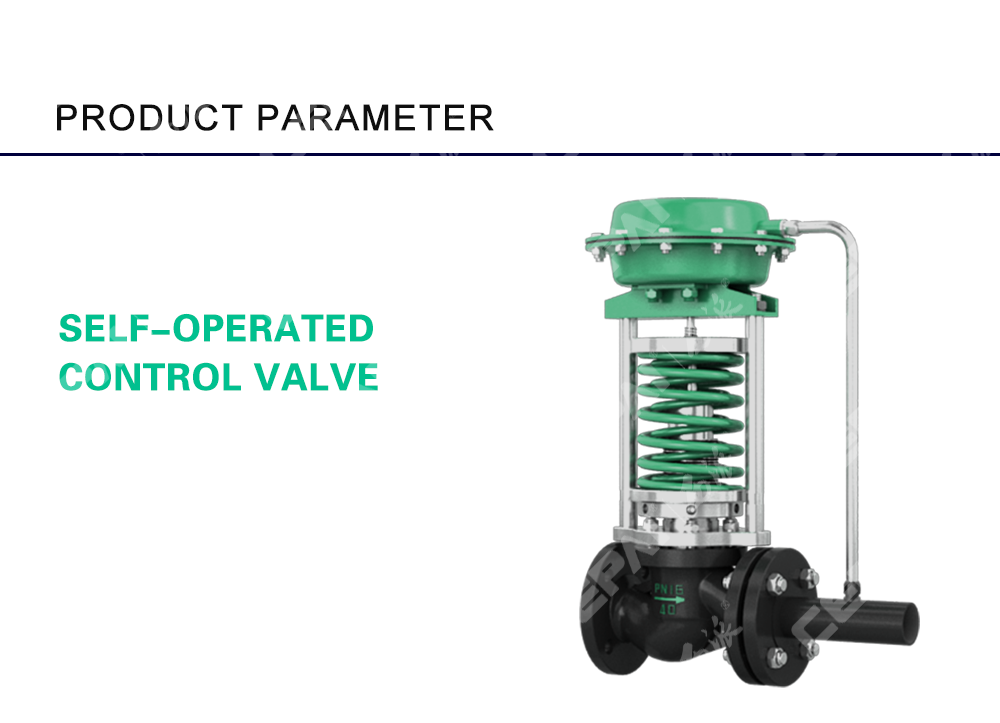

VALVE BODY
| Type | Straight-through ball valve |
| Nominal diameter | DN15-DN400mm |
| Nominal pressure | PN16, 40, 64, ANSI150, 300, 600; |
| Connection form: | Flange type |
| Valve body material: | WCB, CF8, CF8M, etc. |
| Valve cover form: | Standard type (P): -5～+70℃ |
| Extended type (condenser): | ＜＋250℃ |
| Filling: | PTFE filler, flexible graphite filler |
| Valve core form: | single-seat plunger type valve core, sleeve valve core |
| Adjustment characteristics: | quick opening |
| Internal materials: | 304, 316, etc. |
| Diaphragm type | |
| Piston | |
| Functional form: | before control valve, after control valve |
| Leakage: | Level IV (metal seal), Level VI (soft seal) |
