Brand: Cepai
Types Of: Globe Valves
Support Customization: Oem
Place Of Origin: China
Medium Temperature: Normal Temperature
Flow Medium: Gas, Water, Oil
Structure: Control
| Quantity（Piece/Pieces） | 1 ~ 10 | >10 |
| Est. Time（days) | 20 | To be negotiated |
If you finish the payment today, your order will ship out within the delivery date.

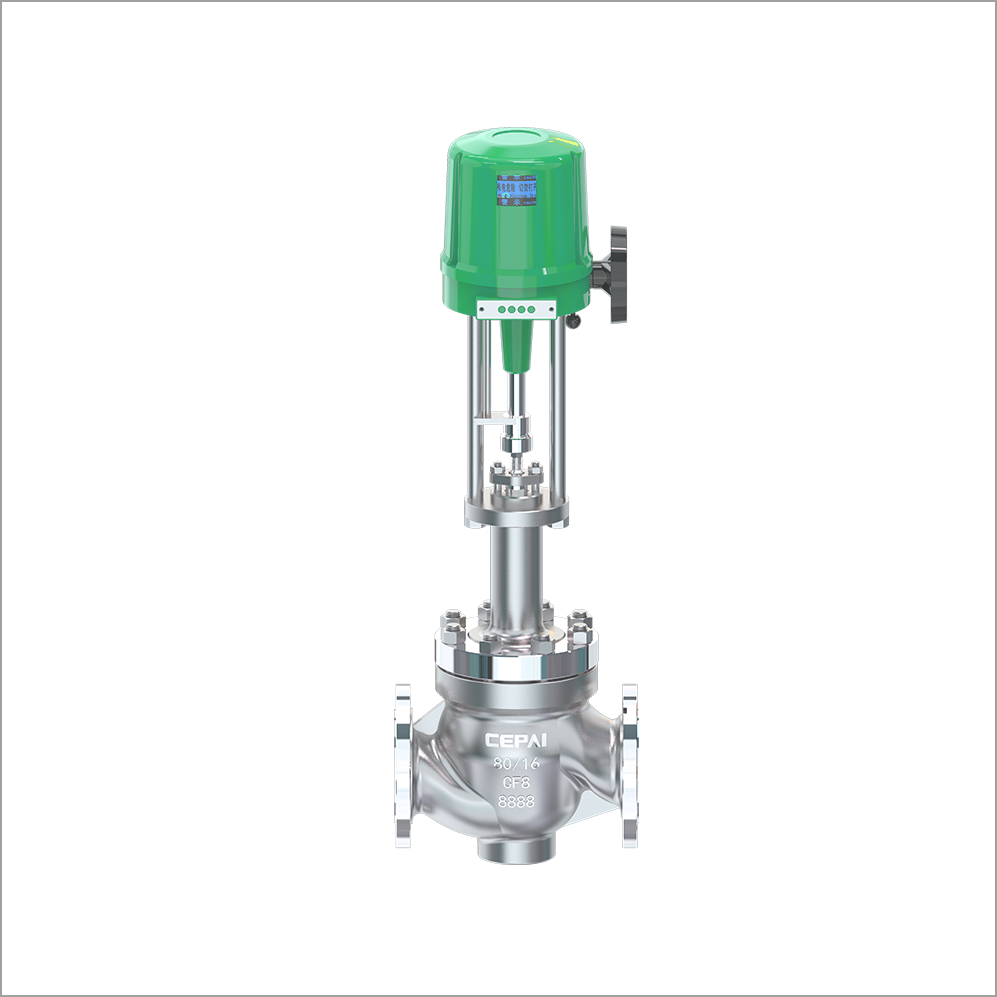

Electric Sleeve Control Valve has the advantages of simple structure, rapid action and high reliability, and is widely used in industrial production and fluid control fields. To choose the right type of high-efficiency electric Sleeve Control Valve, it is necessary to note that:
our company in addition to electric sleeve control valve, It also produces Pnenmatic control valve, Electric Control Valve, Pneumatic Ball Valve, Electric Ball Valve, and Pneumatic Butterfly Valve, Electric Butterfly Valve, Fluorine Lined Valve, etc.
| Type | Straight-through double-seat ball valve |
| Nominal diameter | DN15-DN400mm |
| Nominal pressure | PN16, 40, 64, ANSI150, 300, 600; |
| Connection form: | Flange type |
| Valve body material: | WCB, WC6, WC9, LCB, LC2, LC3, CF8, CF8M, etc. |
| Valve cover form: | Standard type (P): -17-+230℃ |
| Gland type: | Bolt pressing type |
| Filling: | PTFE V-shaped packing, PTFE asbestos and flexible graphite |
| Valve core form: | pressure balanced valve core |
| Adjustment characteristics: | equal percentage, linear |
| Internal parts materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, etc. |
| Model: | Electric actuator |
| Voltage: | 220V, 380V |
| Ambient temperature: | -30-+70℃ |
| Control signal: | 4-20mADC (4-20mA signal feedback can be provided according to customer requirements) |
| Leakage amount: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B 16.104 Class VI Accessories (configured upon request) Positioner, filter pressure reducing valve, hand wheel mechanism, limit switch, solenoid valve, valve position transmitter, air control valve, speed increaser, position keeping valve, etc. |
Product Categories : Instrument Valve > Electric Control Valve
