Products
Model No.: CP_LUGB
Model No: LUGB/E, LWGB/E
Accuracy: ±1% / ±2.5% reading measurement
Protection Grade: IP65 / IP68 waterproof
Output Signal: 4-20mA, Pulse, RS485 MODBUS-RTU, Optional HART, GPRS
Explosion Proof Class: Ex d IIC T6 Gb, Ex ia IIC T6 Db
Medium Temperature Range: -40°C ~ 350°C
Ambient Temperature Range: -20°C ~ 55°C
Transportation: Ocean,Land,Air
Port: shanghai,Ningbo,Huai'an
Payment Type: L/C,T/T,D/P
| Website Field | Recommended Content |
| Brand | CEPAI |
| Product Type | Intelligent Vortex Flowmeter |
| Minimum Order | 1 Piece / Piece |
| Payment Type | L/C, T/T, D/P (use existing website commercial settings) |
| Transportation | Ocean, Land, Air, Express or other agreed method |
| Port | Shanghai, Ningbo or Huai'an |
| Customization | Connection, size, pressure, temperature, output and communication options available |
| Attribute | Content |

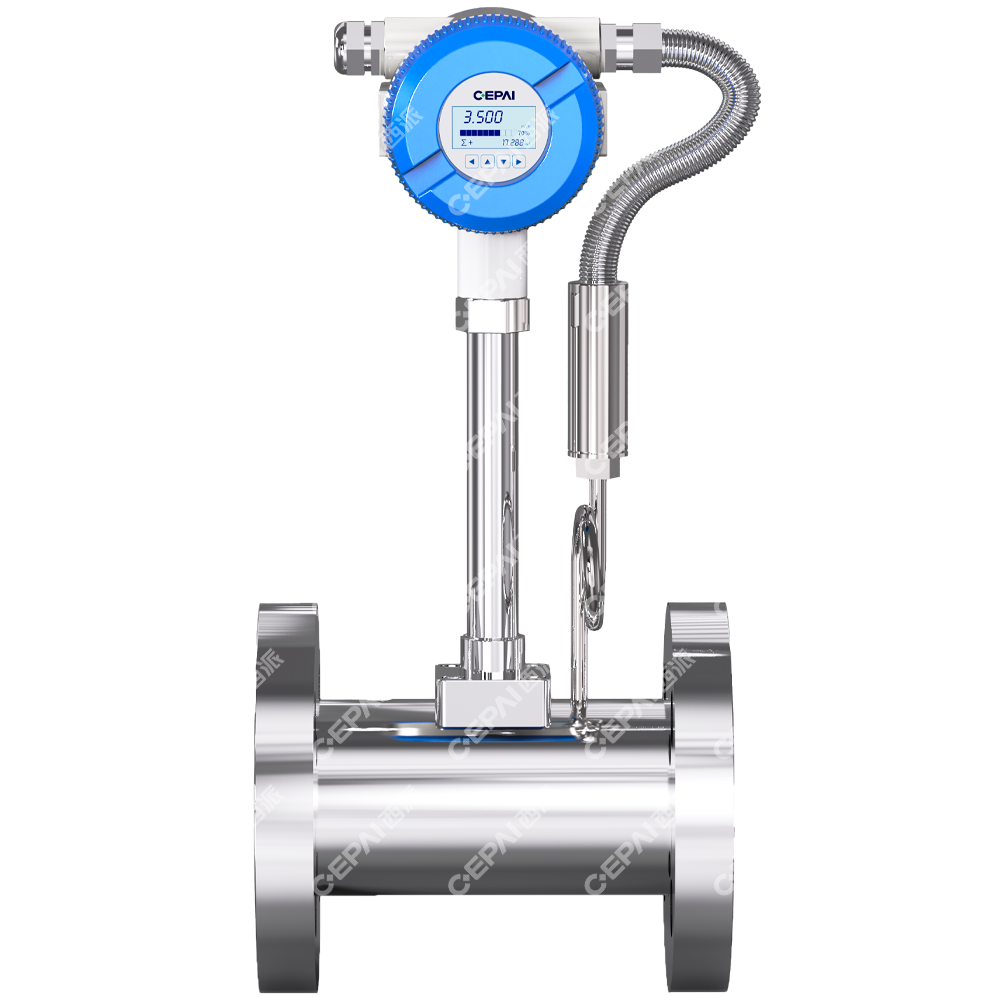

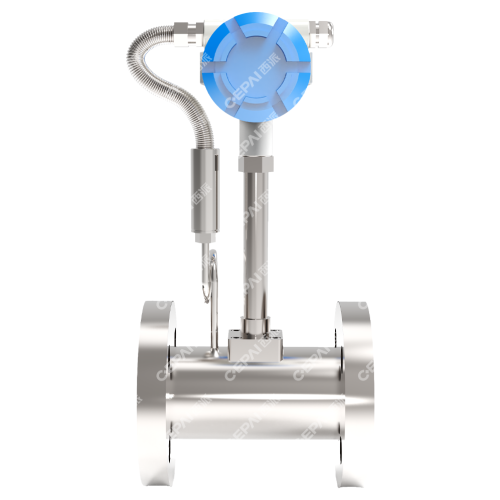

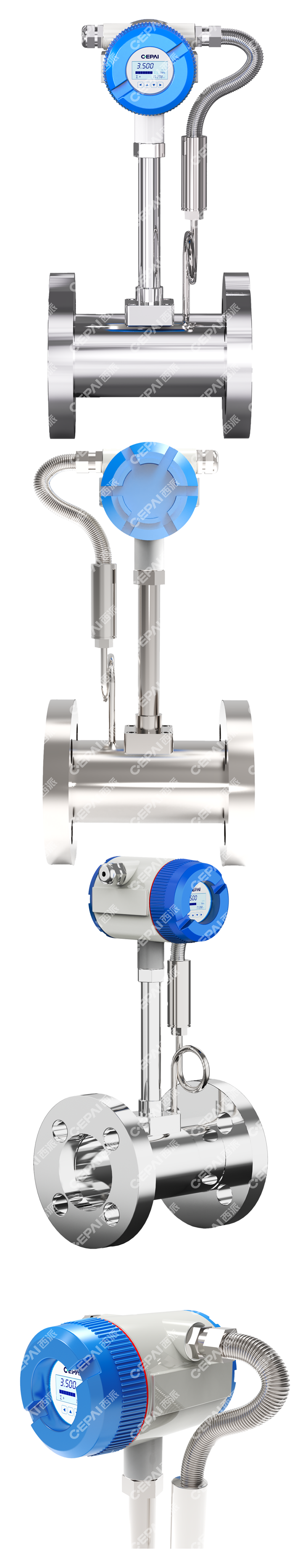

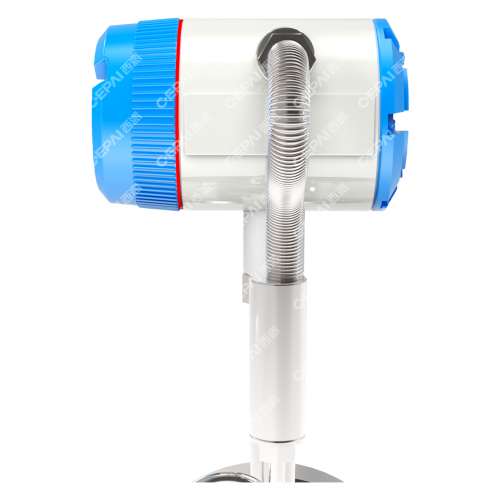

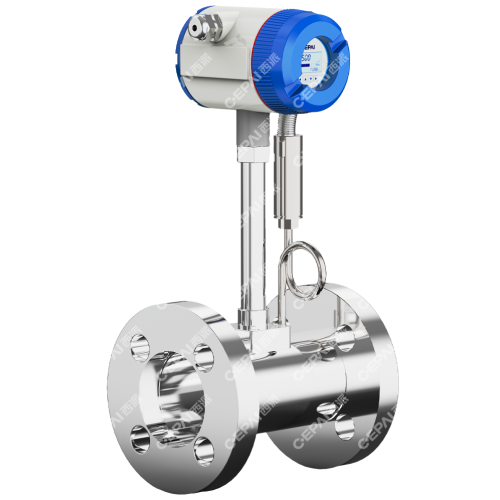

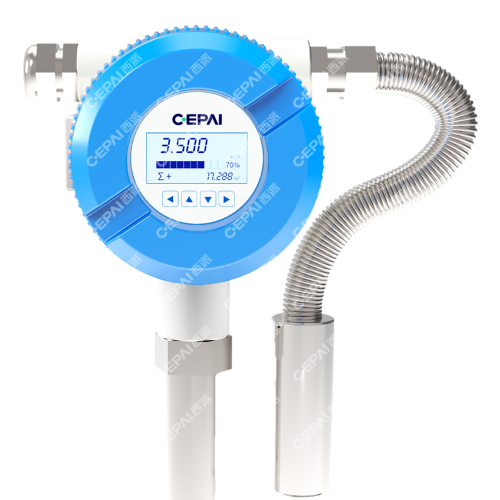

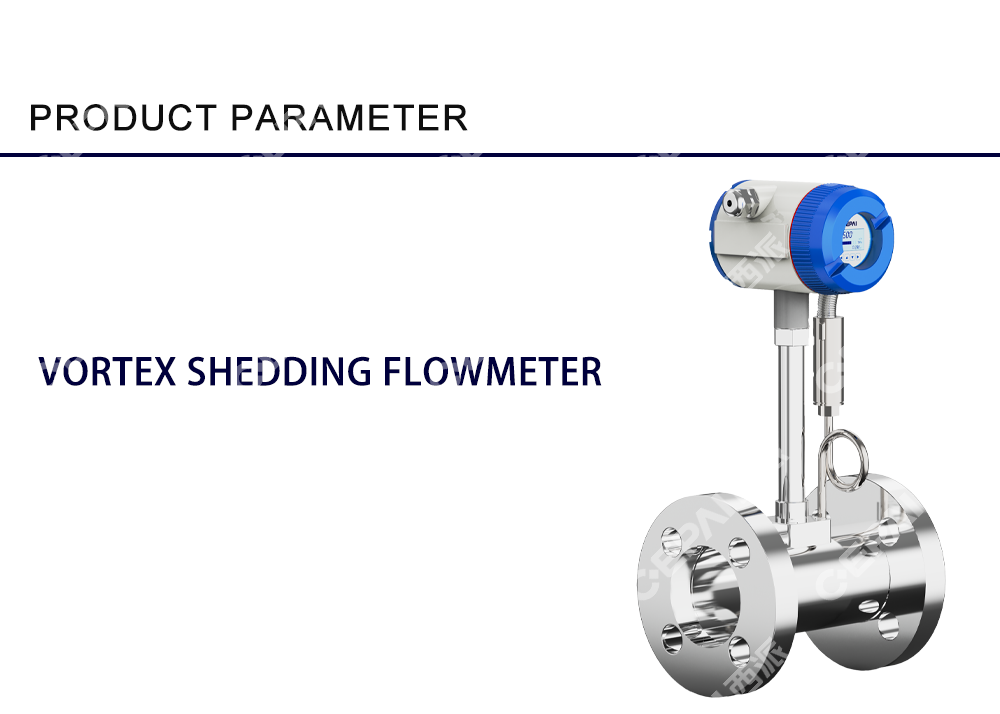

| Product Name | Intelligent Vortex Flowmeter |
| Product Series | LUGB/E full-bore type; LWGB/E insertion type |
| Accuracy Grade | ±1%R or ±2.5%R |
| Nominal Diameter | DN15-DN300 full-bore; DN300-DN1000 insertion |
| Nominal Pressure | DN15-DN200: 4.0 MPa; DN250-DN300: 1.6 MPa; higher ratings by agreement |
| Installation Method | Wafer / flange-clamped, flanged, clamp-mounted or insertion type, subject to model |
| Supply Voltage | Sensor/transmitter: 12-24 VDC; 3.6 V battery-powered version |
| Meter Body Material | 1Cr18Ni9Ti austenitic stainless steel; other materials by agreement |
| Range Ratio | 10:1 |
| Medium Temperature | Piezoelectric type: -40 to 150 °C, -40 to 250 °C or -40 to 350 °C |
| Allowable Vibration | Piezoelectric type: 0.2 g |
| Communication | RS485, HART or GPRS, subject to configuration |
| Output Signal | Square-wave pulse: high level ≥5 V, low level ≤1 V; 4-20 mA current output |
| Pressure Loss Coefficient | Complies with JB/T 9249; Cd ≤ 2.4 |
| Explosion Protection | Intrinsically safe: Ex ia IIC T2-T6; flameproof: Ex d IIC T2-T6 |
| Protection Level | General type IP65; submersible type IP68 |
| Environmental Conditions | -20 to 55 °C; RH 5%-90%; atmospheric pressure 86-106 kPa |
| Suitable Medium | Gas, liquid and steam |
| Transmission Distance | 3-wire pulse ≤300 m; 2-wire 4-20 mA ≤1500 m; RS485/HART ≤1200 m |
| Part/Option | Available Material / Configuration |
| Meter Body | 1Cr18Ni9Ti austenitic stainless steel; other materials available by agreement |
| Sensing Element | Piezoelectric vortex sensor |
| Instrument Configuration | LUGB/E full-bore type or LWGB/E insertion type |
| Process Connection | Wafer / flange-clamped, flanged, clamp-mounted or insertion connection |
| Power Supply | 12-24 VDC or 3.6 V battery-powered configuration |
| Output & Communication | 4-20 mA, pulse, RS485, HART or GPRS, subject to selected configuration |
| Compensation Options | Pressure transmitter and Pt100 temperature input for compensated measurement |
| Field | Recommended Content |
| Selling Units | Piece / Pieces |
| Recommended Package Type | Protective carton and/or export wooden case according to meter size and shipment method |
| Documentation | Product manual, inspection documents and ordered certificates, subject to contract |
| Delivery Method | Ocean, land, air, express or other agreed method |
Product Categories : Instruments And Meters > Flow Meter
Home > Products > Instruments And Meters > Flow Meter > Intelligent Vortex Flowmeter
