Products
Model No.: CP_LX
Accuracy: Class 1.5; Class 1.0 available as a special option
Protection Grade: IP65
Output Signal: 4-20mA, HART, RS485 Modbus, local pointer, upper/lower relay alarm
Explosion Proof Class: Ex d IIC T6; Ex ia IIC T6
Medium Temperature Range: -30℃ ~ +350℃; PTFE lining ≤80℃
Ambient Temperature Range: Local: -40~+120℃; Remote transmission: -30~+60℃
Transportation: Ocean,Land,Air,Express,others
Port: Shanghai,Ningbo,Huai'an
Payment Type: L/C,T/T,D/P
| Website Field | Recommended Content |
| Brand | CEPAI |
| Product Type | Metal Tube Rotameter / Variable Area Flowmeter |
| Minimum Order | 1 Piece / Piece |
| Payment Type | L/C, T/T, D/P (use existing website commercial settings) |
| Transportation | Ocean, Land, Air, Express or other agreed method |
| Port | Shanghai, Ningbo or Huai'an |
| Customization | Flow range, size, pressure class, wetted material, connection, indicator, output and alarm options available |
| Attribute | Content |

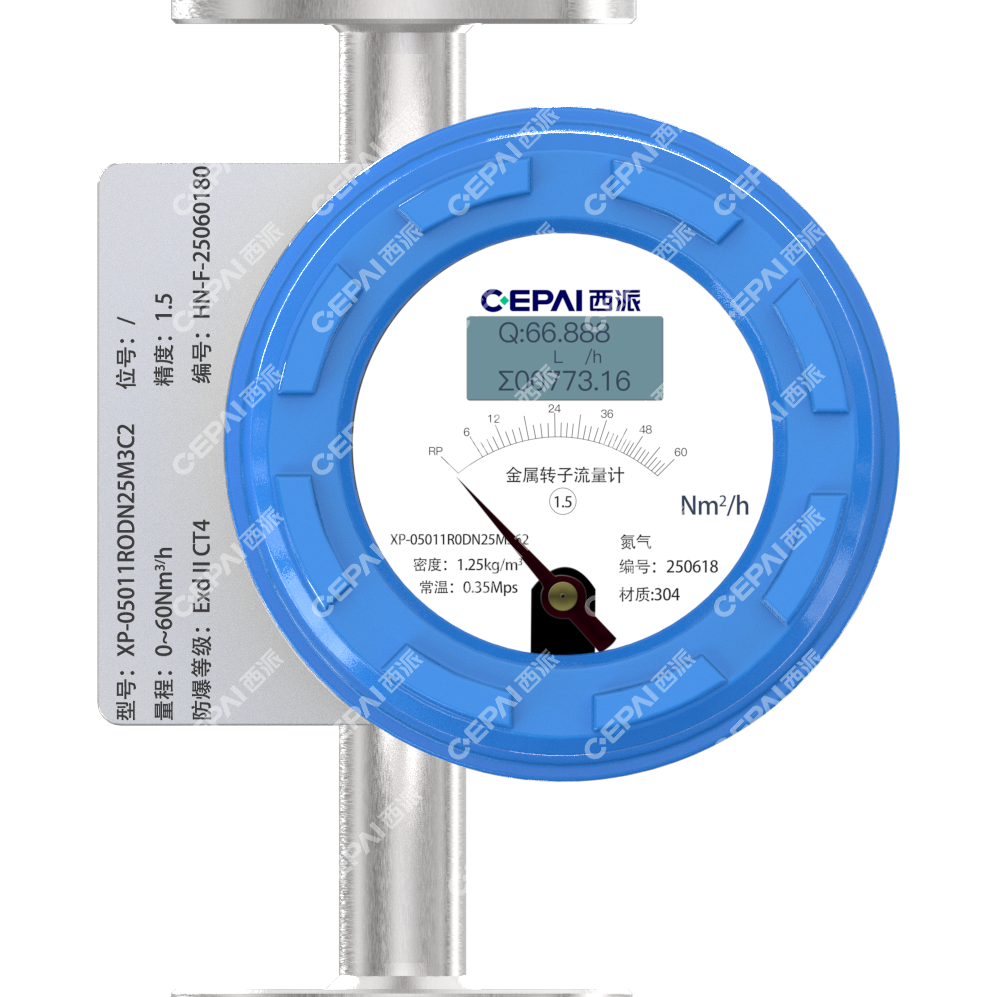

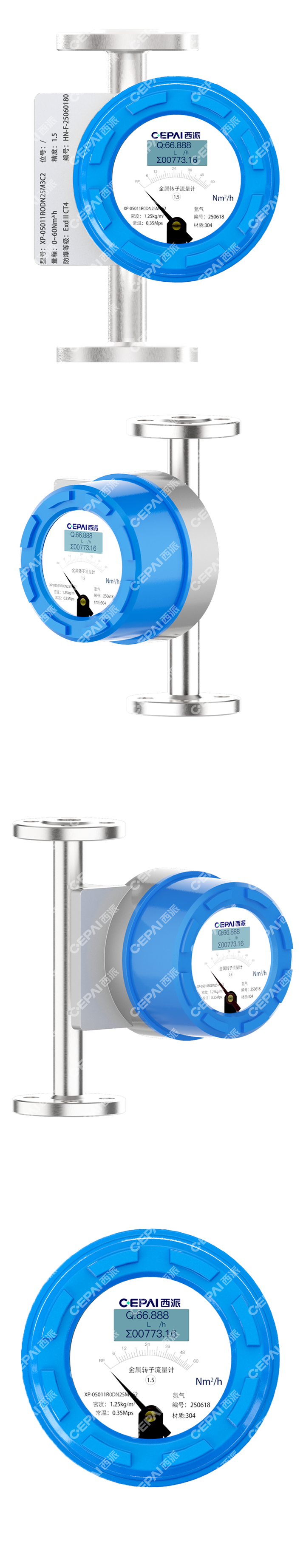

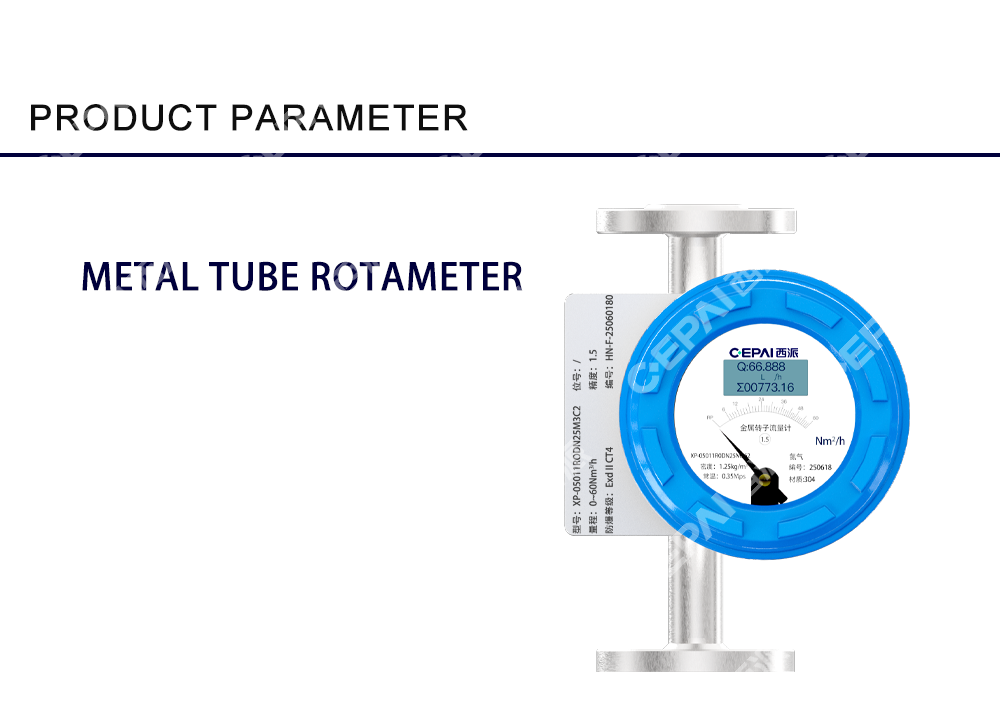

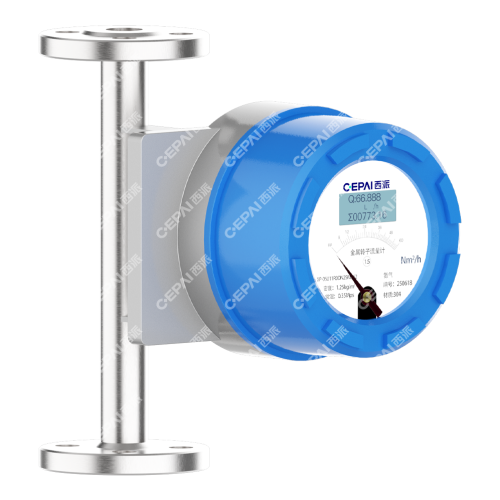

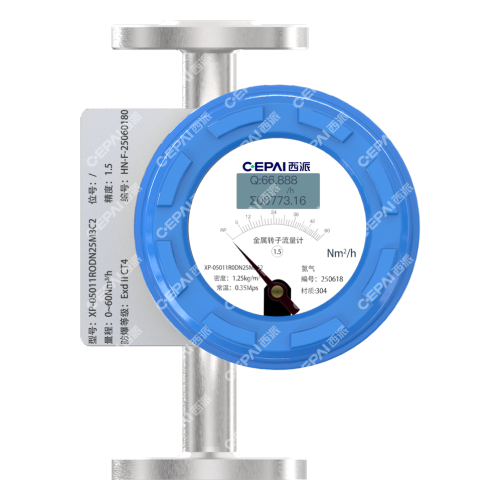

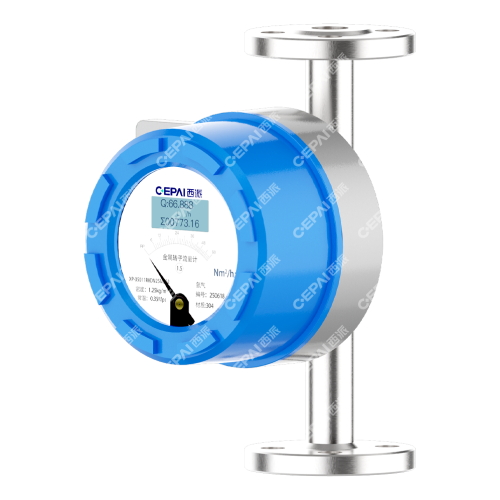

| Product name | Metal Tube Rotameter |
| Measurement Principle | Variable area with float position transmitted by non-contact magnetic coupling |
| Measured Media | Liquids, gases and steam, subject to material, viscosity, pressure and temperature compatibility |
| Nominal Size | Standard listed sizes DN15, DN25, DN50, DN80, DN100 and DN150; DN200/custom designs subject to confirmation |
| Flow Range | Liquids: 1.0-150,000 L/h; gases: 0.05-3,000 m³/h |
| Accuracy Grade | Class 1.5; Class 1.0 available as a special option |
| Range Ratio | 10:1 standard; 20:1 special |
| Nominal Pressure | DN15/DN25/DN50: 4.0 MPa standard, up to 20 MPa; DN80/DN100/DN150: 1.6 MPa standard, with size-dependent higher-pressure options |
| Medium Temperature | Standard -30 to +120 °C; high-temperature 120 to 350 °C; PTFE-lined version not above 80 °C |
| Power Supply | 24 VDC (12-36 VDC), lithium battery or 220 VAC, depending on indicator |
| Output Signal | 2-wire 4-20 mA; 4-20 mA + HART; RS485/Modbus and upper/lower relay alarm options on suitable configurations |
| Output Load | Maximum 500 Ω at 24 VDC supply |
| Ambient Temperature | Local type: -40 to +120 °C; remote-transmission type: -30 to +60 °C |
| Process Connection | GB/T 9119 flange as standard; sanitary clamp and customer-specified flange/special connections available |
| Cable Entry | M20 × 1.5 or 1/2 NPT |
| Protection Level | IP65 |
| Explosion Protection | Intrinsically safe Ex ia IIC T6 or flameproof Ex d IIC T6; exact marking subject to selected certificate and nameplate |
| Part/Option | Available Material / Configuration |
| Measuring Tube / Sensor | 304 / 06Cr19Ni10 stainless steel or 316Ti / 0Cr18Ni12Mo2Ti stainless steel |
| Float | 316L / 00Cr17Ni14Mo2Ti stainless steel, Hastelloy B, Hastelloy C, titanium alloy or other confirmed material |
| Lining | PTFE lining available for corrosive service; maximum stated medium temperature 80 °C |
| Sanitary Finish | Surface roughness below 0.8 Ra for sanitary version |
| Flow Arrangement | Vertical, horizontal, bottom-in/side-out, side-in/side-out or side-in/top-out |
| Special Construction | Standard, high-temperature, cooling/heating jacketed and sanitary versions |
| Indicator | Local mechanical indication, intelligent local/remote transmission, intrinsically safe, flameproof, HART or RS485/Modbus configuration |
| Limit Alarm | Optional upper and/or lower limit alarm with relay interface |
| Magnetic Filter | Recommended upstream when the process medium contains ferromagnetic particles |
| Field | Recommended Content |
| elling Units | Piece / Pieces |
| Recommended Package Type | Protective carton and/or export wooden case according to meter size and shipment method |
| Documentation | Product manual, inspection documents and ordered certificates, subject to contract |
| Delivery Method | Ocean, land, air, express or other agreed method |
