Products
Model No.: CP_LUX
Accuracy: Class 1.0, Class 1.5
Protection Grade: IP65
Output Signal: 4-20mA, Pulse, RS485 Modbus, Optional HART, Dual Alarm
Explosion Proof Class: Ex d IIC T6 Gb, Ex ia IIC T6 Ga
Medium Temperature Range: -20℃ ~ 80℃
Ambient Temperature Range: -20℃ ~ 60℃
Transportation: Ocean,Land,Air,Express,Others
Port: Shanghai,Ningbo,Huai'an
Payment Type: D/P,T/T,L/C
| Website Field | Recommended Content |
| Brand | CEPAI |
| Product Type | Vortex Precession Flowmeter |
| Minimum Order | 1 Piece / Piece |
| Payment Type | L/C, T/T, D/P (use existing website commercial settings) |
| Transportation | Ocean, Land, Air, Express or other agreed method |
| Port | Shanghai, Ningbo or Huai'an |
| Customization | Pipe size, flow range, pressure class, power supply, output, communication and explosion-protection options available |
| Attribute | Content |

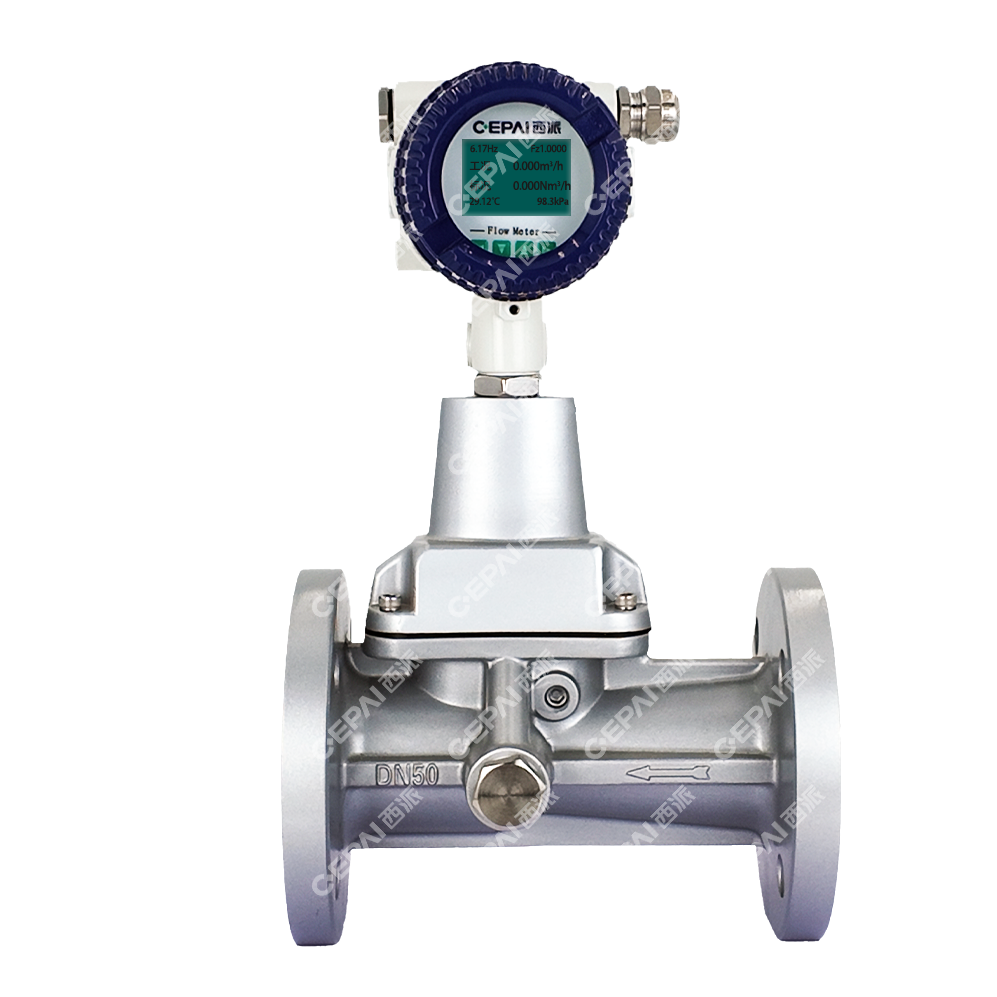

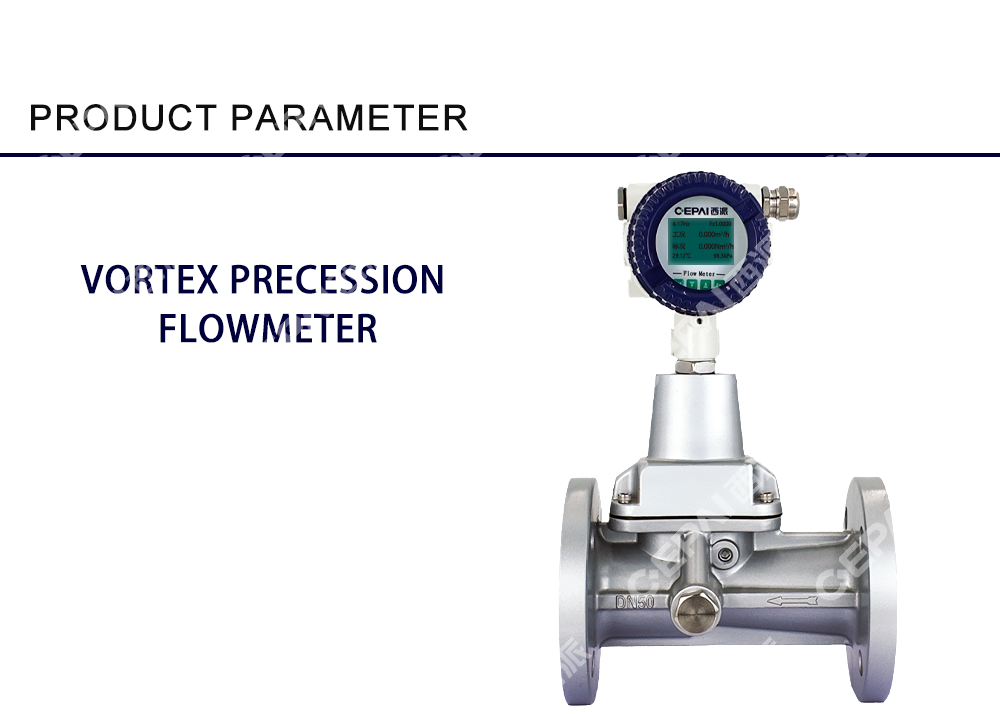

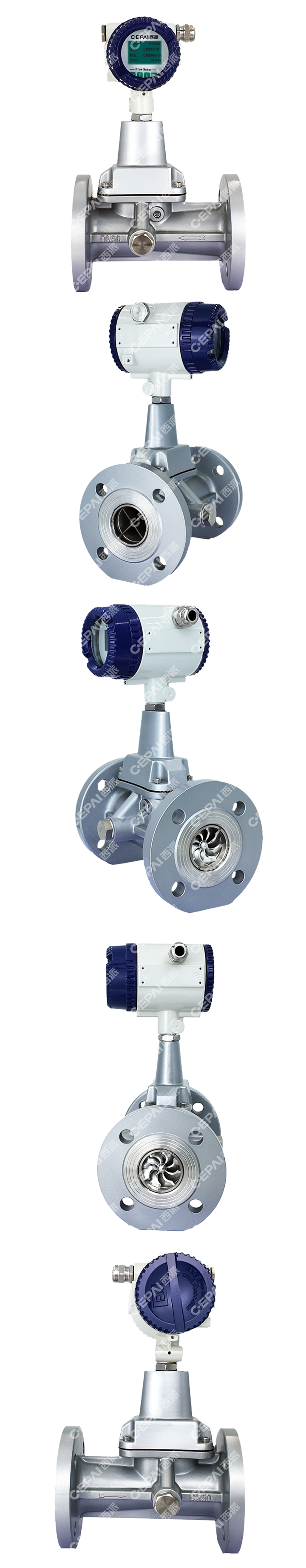

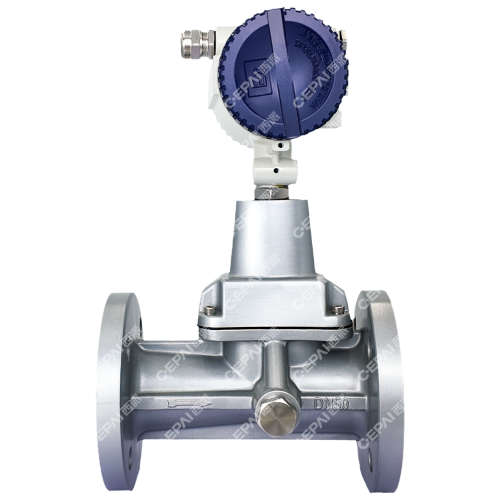

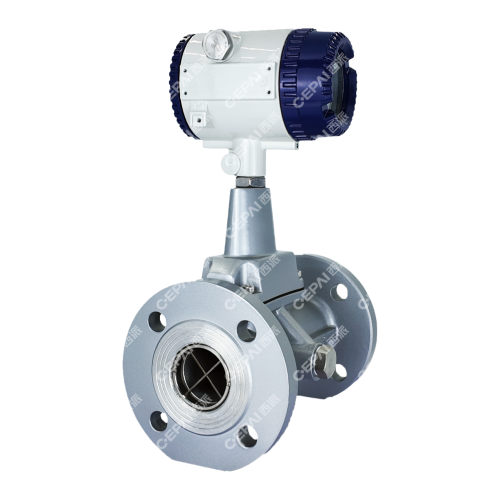

| Product Name | Vortex Precession Flowmeter |
| Model Series | CP-LUX |
| Measurement Principle | Precession frequency of a forced swirling gas flow |
| Applicable Media | Natural gas, compressed gas and other clean gases; gas composition and calibration suitability must be confirmed |
| Pipe Diameter Range | DN20-DN200 |
| Flow Range | Approximately 2-3600 m³/h, depending on nominal size and range code |
| Accuracy Grade | Level 1.0 or Level 1.5; system accuracy after temperature and pressure compensation |
| Repeatability | Not greater than one-third of the absolute basic-error limit, subject to selected pressure class |
| Working Pressure | Typical selections 1.6, 2.5, 4.0 or 6.3 MPa; higher-pressure versions are subject to size and special order |
| Medium Temperature | -20 to +80 °C |
| Ambient Conditions | -20 to +60 °C; relative humidity 5-90% (per supplied parameter sheet) |
| Power Supply | 24 VDC external supply, 3.6 V lithium battery, or combined supply configuration |
| Output Signal | 4-20 mA analog signal, pulse/frequency output and alarm output; optional RS485 Modbus and HART |
| Display & Compensation | Operating flow, standard flow, totalized flow, pressure and temperature; automatic temperature-pressure and compressibility correction |
| Explosion Protection | Ex d IIC T6 Gb, Ex ia IIC T6 Ga or Ex ia IIIC T80 °C Da, subject to the selected certified configuration |
| Protection / Connection | IP65 enclosure; flanged process connection; M20 × 1.5 cable entry |
| Part/Option | Available Material / Configuration |
| Meter Body | Cast aluminium alloy or stainless steel according to pressure rating and selected construction |

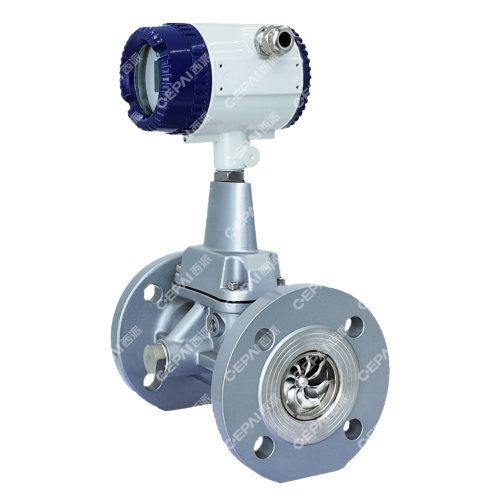

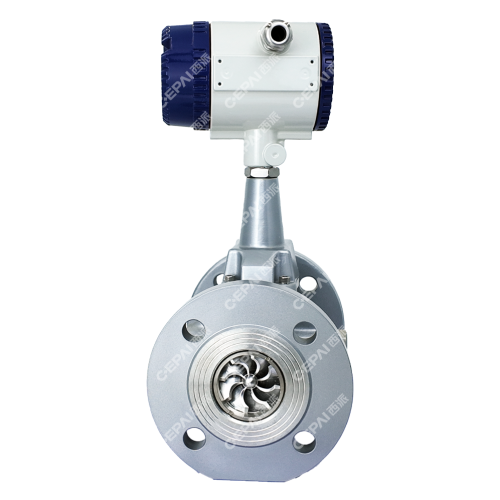

| Vortex Generator | Aluminium-alloy helical guide-vane assembly |
| Temperature Sensor | Pt100 platinum resistance element |
| Pressure Sensor | Piezoresistive diffused-silicon sensor |
| Flow Detection Element | Piezoelectric crystal sensor |
| Process Connection | Flanged connection; dimensional standard based on GB/T 9112-9113-2000 unless otherwise specified |
| Power Configuration | 24 VDC external power, lithium battery, or lithium battery plus 24 VDC |
| Output / Communication | Two- or three-wire 4-20 mA, pulse/frequency, alarm, RS485 Modbus and optional HART |
| Range / Pressure Selection | A/B flow-range codes and model-dependent pressure classes |
| Display Orientation | Converter head rotatable through 360° |
| Field | Recommended Content |
| Selling Units | Piece / Pieces |
| Recommended Package Type | Protective carton and/or export wooden case according to meter size and shipment method |
| Documentation | Product manual, inspection documents and ordered certificates, subject to contract |
| Delivery Method | Ocean, land, air, express or other agreed method |
Product Categories : Instruments And Meters > Flow Meter
Home > Products > Instruments And Meters > Flow Meter > Vortex Precession Flowmeter
