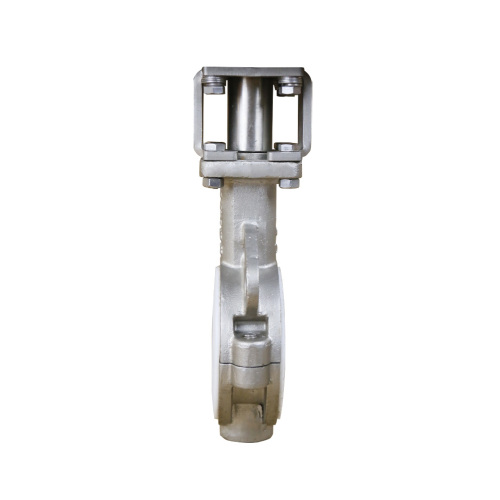

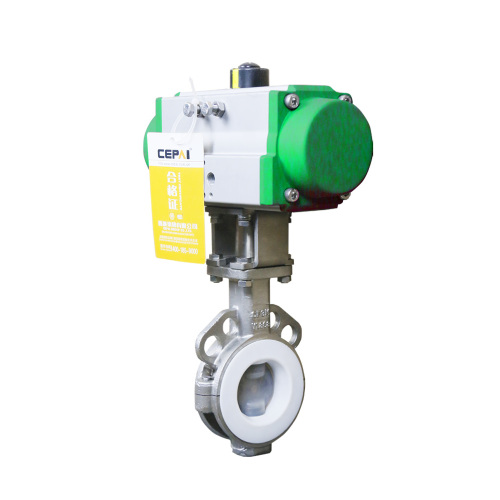

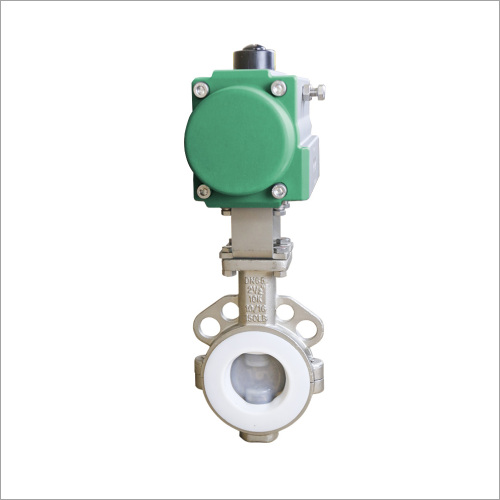

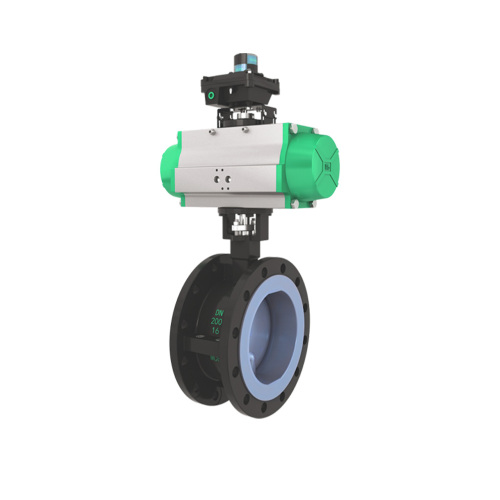

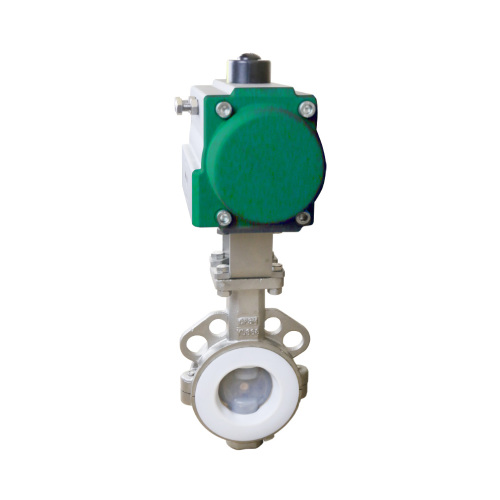

pneumatic fluorine-lined butterfly valves have the characteristics of excellent corrosion resistance, good sealing performance, and easy operation, and are suitable for fluid control in various industrial fields.
Features:
2. Good sealing performance: Using fluororubber sealing ring, it has good sealing performance and can effectively prevent fluid leakage.
3. Easy to operate: Through the control of the pneumatic device, remote control and automatic control can be realized, and the operation is simple and convenient.
4. Compact structure: It adopts Butterfly Valve structure, has compact structure and takes up little space.
5. Good high temperature resistance: Fluorine plastic materials have good high temperature resistance and can adapt to high temperature working conditions.
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
VALVE BODY
| Nominal diameter: | DN50-1000mm |
| Nominal pressure: | PN6, 10, 16, 25; ANSI 150LB |
| Flange connection: | sandwich type, flange type |
| Body material: | flange type |
| Gland form: | platen type |
| Body material: | WCB lined F46, CF8 lined F46, WCB lined PFA, CF8 lined PFA |
| Packing: | PTFE |
| Spool form: | center line control plate |
| Flow characteristics: | equal percentage, switch |
| Internal materials: | WCB, CF8, CF8M with F46, PFA |
| Model: | Piston actuator |
| Gas supply pressure: | 400 ~ 700kPa |
| Air source interface: | G1/8 ", G1/4 ", G3/8 ", G1/2" |
| Ambient temperature: | -30 ~ +70℃ |
| Action form: | single action, double action |
| Leakage: | meets ANSI B16.104 Class VI |
