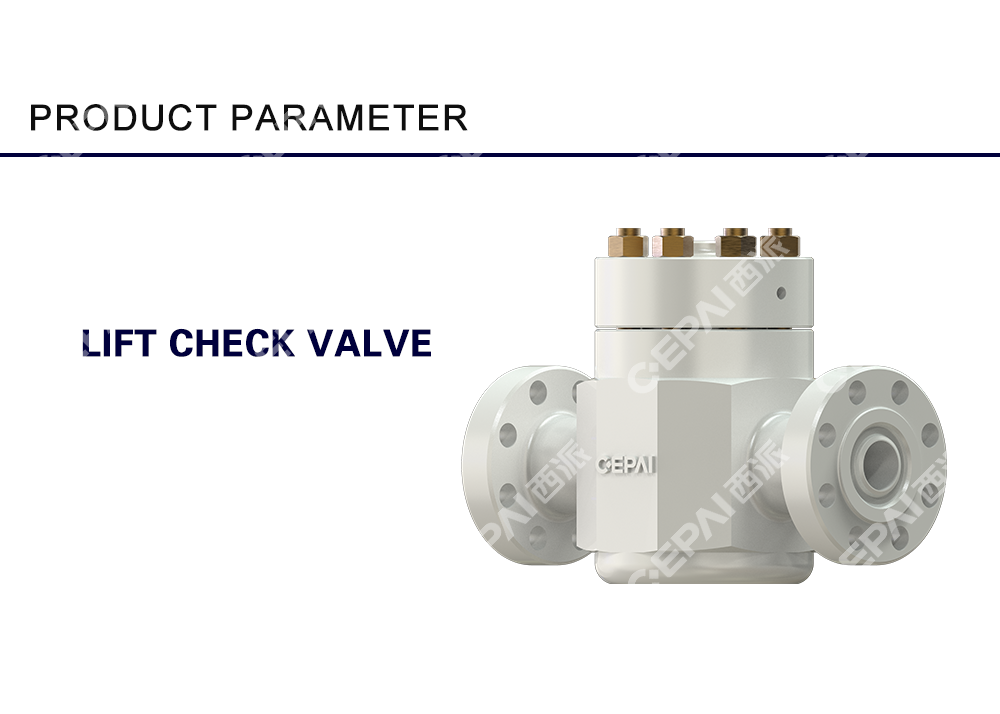

In the realm of fluid control systems, the lift
check valve stands as a paragon of precision engineering, ensuring media flows in one direction with unmatched reliability. This valve, akin to a meticulous gatekeeper, employs a vertical motion mechanism to create an impermeable barrier against backflow, making it indispensable in applications demanding tight sealing and precise flow control.
The lift check valve's core architecture comprises a body, seat, disc (valve plug), and guide sleeve. Its operation hinges on the dynamic equilibrium between fluid pressure and gravitational force:
- Forward Flow: As media enters from the inlet under positive pressure, the force overcomes the disc's weight and frictional resistance, causing it to rise vertically along the guide sleeve. This action opens the passage, allowing smooth media transit.
- Reverse Cutoff: When flow velocity drops or reverses, the disc swiftly descends via gravity or reverse pressure, sealing tightly against the seat to block backflow.
This vertical motion path, combined with high precision lapped sealing surfaces between the disc and seat, achieves zero-leakage performance, making it ideal for clean media or systems requiring stringent sealing.
Compared to other check valve types, the lift check valve offers distinct technical merits:
- Sealing Reliability
The planar or conical sealing design ensures mechanical contact closure, maintaining tight shutoff even under low-pressure conditions—outperforming swing check valves that rely on fluid dynamics for sealing. - Flow Stability
The axial vertical movement of the disc creates a straight-through flow path with minimal turbulence, making it suitable for applications sensitive to fluid pulsation (e.g., precision metering pipelines, hydraulic systems). - Compact Design
Its straight-through body configuration minimizes footprint and weight, facilitating installation in space-constrained pipelines (e.g., instrument tubing, small equipment interfaces).
The lift check valve's characteristics make it pivotal in these sectors:
- Chemical & Pharmaceutical: Prevents corrosive media from contaminating feedstock in reactor inlets; ensures unidirectional flow of pharmaceuticals to avoid cross-contamination.
- Hydraulic & Pneumatic Systems: Serves as a backflow preventer in cylinders, safeguarding against actuator retraction due to pressure fluctuations (e.g., construction machinery, automated production lines).
- Food & Beverage: Hygienic-grade stainless steel variants meet aseptic requirements for conveying juices, dairy products, and preventing microbial contamination.
- Steam Systems: Rapid closure suppresses water hammer effects in steam pipelines, protecting boilers and heat exchangers from 冲击 damage.
- Material Compatibility: Choose body materials (e.g., cast iron, stainless steel, brass) and sealing surfaces (e.g., rubber, PTFE, carbide) based on media properties to ensure corrosion and wear resistance.
- Installation Orientation: Strictly follow flow direction markings. The disc's vertical axis must align with the pipeline (horizontal installation) or remain plumb (vertical installation) to prevent jamming.
- Regular Inspection: Periodically clean debris between the disc and seat (especially in particle-laden media), inspect sealing surface wear, and promptly grind or replace components to maintain performance.
From laboratory microtubing to industrial-scale piping networks, the lift check valve upholds unidirectional flow integrity through "precise control in vertical motion." As material science and manufacturing precision advance, its application boundaries will expand into more demanding scenarios—high pressure, extreme temperatures, and viscous media—continuously empowering modern industry with safety and efficiency.
