In the intricate network of fluid control systems, swing check valves stand as indispensable sentinels, ensuring the unidirectional flow of media with steadfast reliability. These valves, characterized by their unique design and operational mechanism, have become a cornerstone in various industrial and commercial applications, safeguarding pipelines and equipment from potential damage caused by backflow.

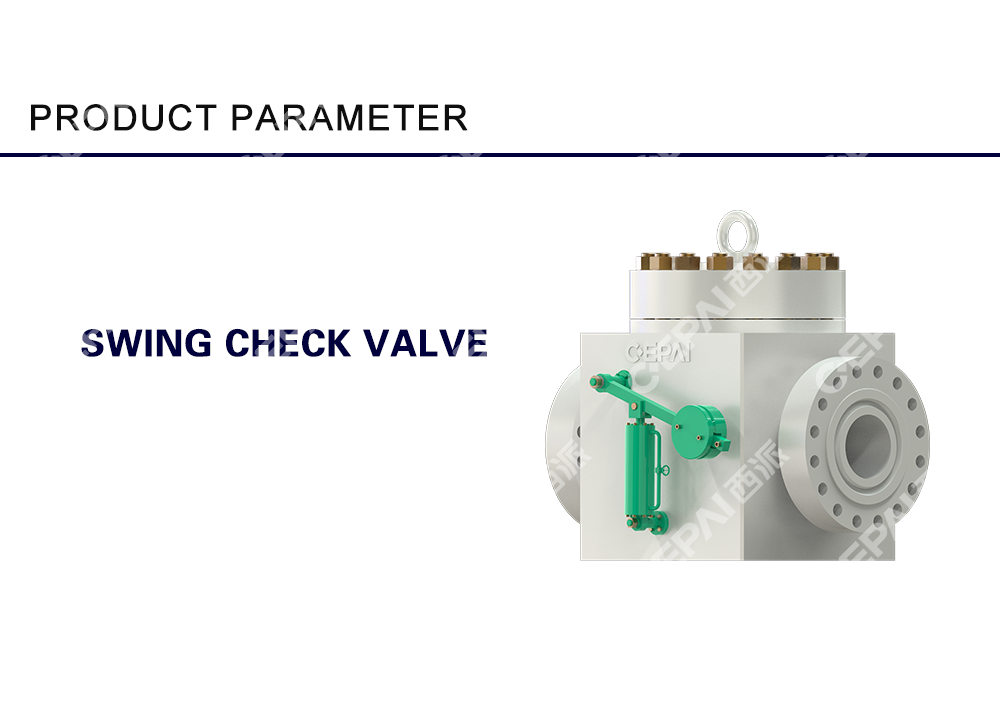

The defining feature of swing check valves lies in their hinged disc mechanism. The valve disc, which is mounted on a hinge or trunnion near the top of the valve body, swings freely to open and close. When fluid flows in the forward direction, the pressure of the fluid pushes the disc upward, allowing the medium to pass through with minimal resistance. Once the flow ceases or reverses, the disc swings back down by gravity or the force of the reverse flow, sealing tightly against the valve seat to prevent backflow. This simple yet efficient design enables swing check valves to handle high flow rates with low pressure drops, making them ideal for applications where fluid velocity and energy conservation are crucial.
One of the key advantages of swing check valves is their versatility. They can be installed in both horizontal and vertical pipelines, adapting to a wide range of installation orientations. In horizontal pipelines, the disc swings up and down, while in vertical pipelines with upward flow, the disc swings open against gravity, ensuring proper sealing when the flow stops. This adaptability makes them suitable for diverse industries, from water and wastewater treatment plants, where they prevent the backflow of contaminated water into clean systems, to power generation facilities, where they protect pumps and turbines from damage caused by reverse flow.
In addition to their flexibility, swing check valves offer excellent durability and reliability. Constructed from robust materials such as cast iron, stainless steel, and bronze, these valves can withstand high pressures and harsh operating conditions. The disc and seat are designed for a tight seal, minimizing leakage even under fluctuating flow conditions. Moreover, the simple structure of swing check valves reduces the number of moving parts, decreasing the likelihood of mechanical failure and making maintenance straightforward.
Swing check valves also play a vital role in preventing water hammer effects, which occur when the flow of fluid is suddenly stopped or reversed, causing a pressure surge that can damage pipelines and equipment. By quickly closing the disc upon the cessation of forward flow, swing check valves dampen the impact of these pressure surges, protecting the integrity of the entire fluid system.
As industries continue to evolve, so do swing check valves. Modern versions often incorporate advanced features such as spring-loaded discs to ensure faster closing times and enhanced sealing performance, especially in applications with low flow velocities or where rapid shutoff is required. Additionally, the development of smart swing check valves with integrated sensors allows for real-time monitoring of valve status, enabling predictive maintenance and improving overall system efficiency.
In conclusion, swing check valves are a testament to the power of engineering simplicity combined with functional excellence. Their ability to provide reliable unidirectional flow control, adapt to various installation scenarios, and withstand demanding operating conditions makes them an essential component in countless fluid handling systems. As technology advances, swing check valves will undoubtedly continue to evolve, further enhancing their performance and contributing to the safe and efficient operation of industrial and commercial processes worldwide.
