Model No.: TSP-CP100
Place Of Origin: China
Transportation: Ocean,Land,Air,Others,Express
Port: Shanghai,Ningbo,Huai'an
Payment Type: T/T,D/P,L/C
| Website Display Field | Recommended Content |

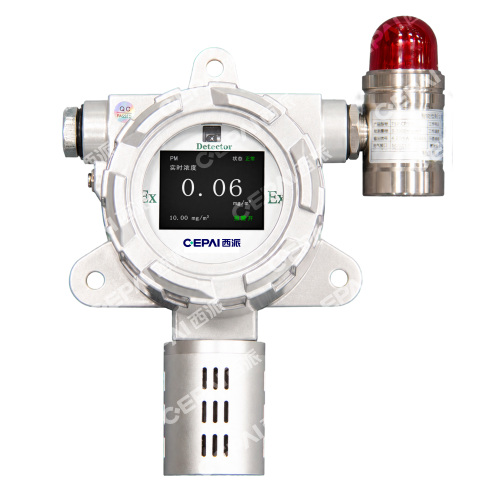

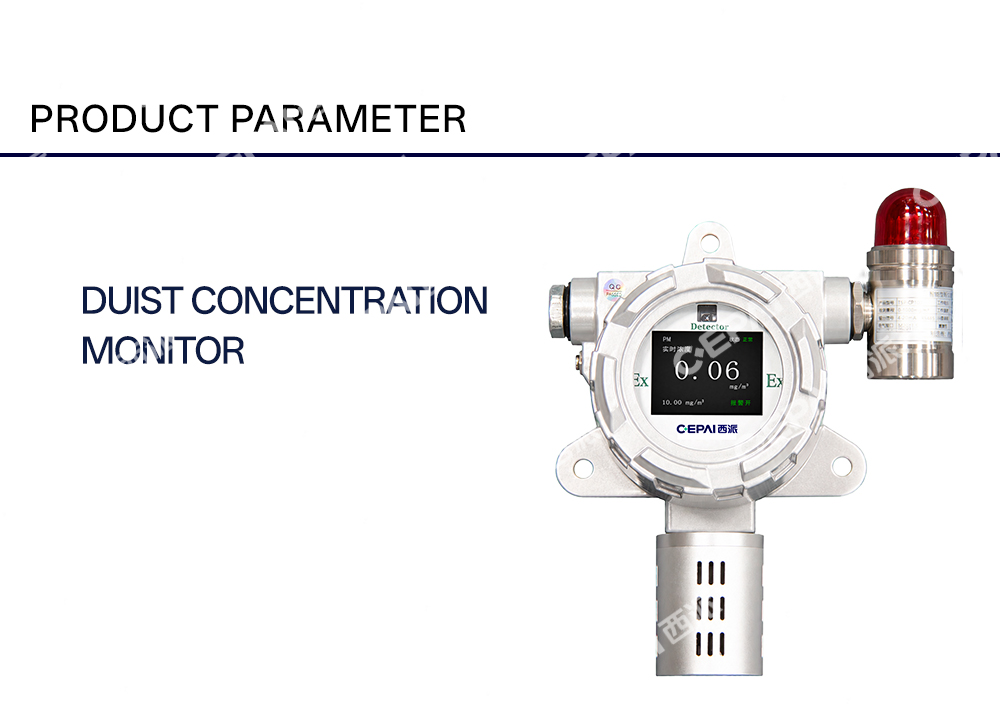

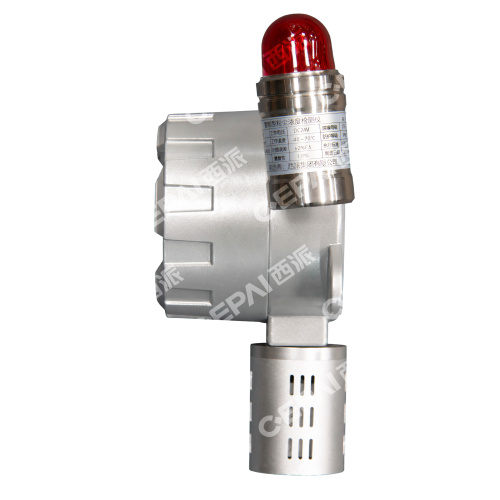

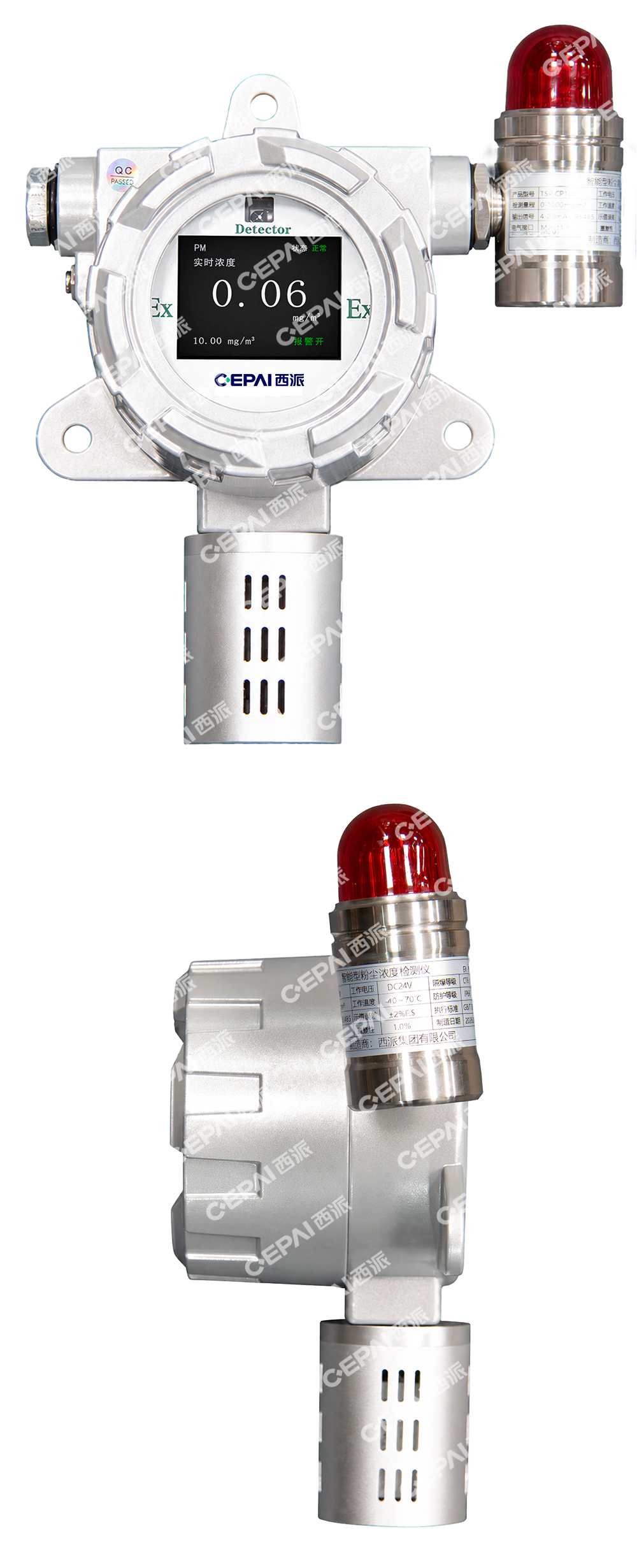

| Product Name | TSP-CP100 Dust Concentration Monitor |
| Product Type | L/C, T/T, D/P |
| Minimum Order | 1 Piece / Piece |
| Transportation | Ocean, Land, Air, Express, Others |
| Port | Shanghai, Ningbo, Huai'an |
| Measured Particulate | PM1, PM2.5, PM10, TSP |
| Measuring Range | 0-9999 µg/m³; 0-1000 mg/m³ (selectable) |
| Output Signal | 4-20 mA, RS485 Modbus RTU, Dual Relay Alarm |
| Attribute | Content |
| Product Name | TSP-CP100 Dust Concentration Monitor |
| Model | TSP-CP100 |
| Product Type | Fixed online particulate concentration detector |
| Measured Particulate | PM1, PM2.5, PM10 and total suspended particulate (TSP) |
| Measurement Principle | Laser scattering |
| Selectable Measuring Range | Low range: 0-1000/2000/4000/6000/8000/9999 µg/m³; high range: 0-10/100/1000 mg/m³; other ranges subject to confirmation |
| Resolution | 0.001, 0.01, 0.1 or 1, depending on the selected range |
| Measurement Error | ≤ ±5% FS |
| Repeatability / Zero Drift | Repeatability ≤ ±2%; zero drift ≤ ±2% |
| Response Time | ≤ 30 s |
| Power Supply | 24 VDC, allowable range 12-30 VDC |
| Analog / Voltage Output | tandard 4-20 mA; optional 0.4-2 V, 0-5 V or 0-10 V, with voltage and current output selected as alternative configurations |
| Digital Communication | RS485 Modbus RTU, transmission distance up to 1 km; optional GPRS, 4G, Wi-Fi, LoRa or ZigBee |
| Alarm Output | Two-stage alarm; two relay dry contacts rated 220 VAC 3 A / 24 VDC 3 A; local audible/visual and remote alarm options |
| Operating Conditions | -20 to +50 °C; special version -40 to +70 °C; 10-95% RH, non-condensing |
| Protection / Dimensions / Entry | Explosion-protected configuration available; 182 × 201 × 92 mm (L × W × H); M20 × 1.5 female cable entry, optional 3/4 NPT or 1/2 NPT |
| Part/Option | Available Material / Configuration |
| Enclosure | Explosion-protected metal housing with external grounding point; exact material and certified marking subject to selected configuration |
| Sensing Element | Laser-scattering particulate sensor; typical service life 2-3 years depending on the environment |
| Particulate Selection | PM1, PM2.5, PM10 or TSP monitoring configuration |
| Range Configuration | Selectable low-range µg/m³ or high-range mg/m³ measurement span |

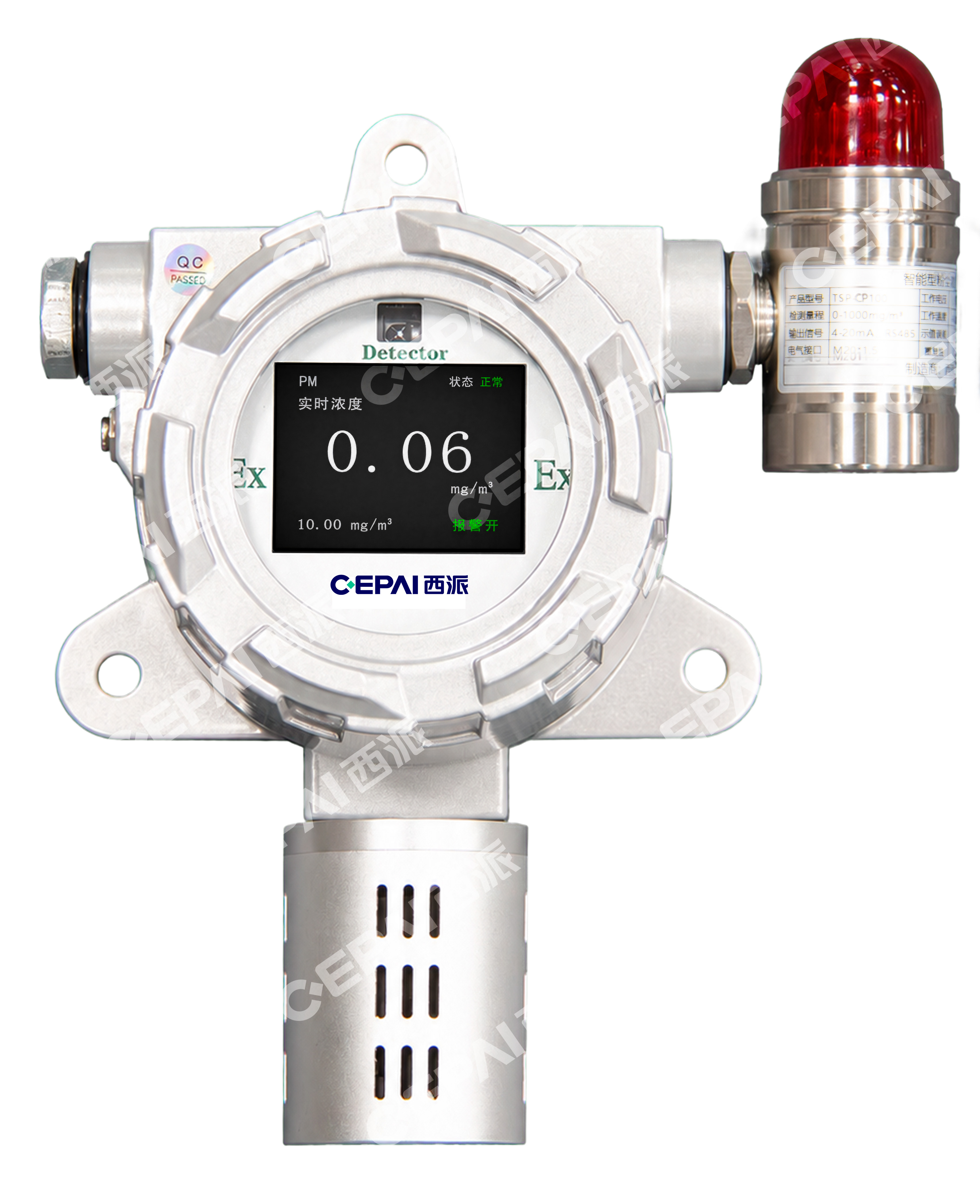

| Display / Operation | Color backlit LCD, Chinese/English interface, local keys and supplied remote controller |
| Analog Output | 4-20 mA standard output or optional voltage output |
| Digital Communication | RS485 Modbus RTU; optional GPRS, 4G, Wi-Fi, LoRa and ZigBee |
| Alarm Configuration | Two-stage high/low or interval-control alarms, sound-light indication and dual relay outputs |
| Electrical Protection | Overvoltage, lightning surge, short-circuit, reverse-polarity, electrostatic and electromagnetic-interference protection |
| Cable Entry | M20 × 1.5 female as standard; optional 3/4 NPT or 1/2 NPT |
| Field | Recommended Content |
| Selling Units | Piece / Pieces |
| Recommended Package Type | Protective carton and/or export wooden case according to shipment method and project requirements |
| Documentation | Product manual, certificate of conformity, factory inspection report and explosion-protection certificate where applicable, subject to contract |
| Delivery Method | Ocean, land, air, express or other agreed method |
