Products
Model No.: BXYQ-CP10
Certification: Reach
Place Of Origin: China
Transportation: Ocean,Land,Air,Express,Others
Port: Shanghai,Ningbo,Huai'an
Payment Type: L/C,T/T,D/P,Others
Incoterm: FOB,CIF,EXW,Express Delivery

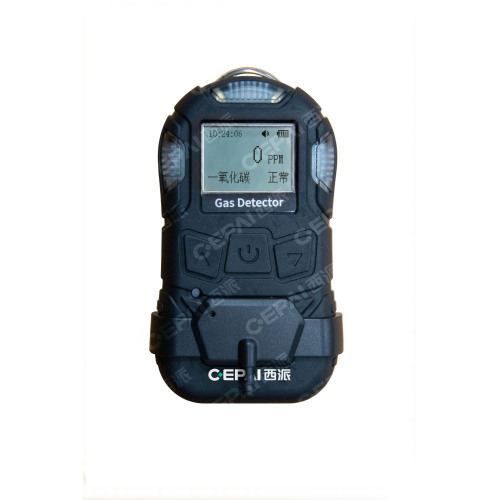

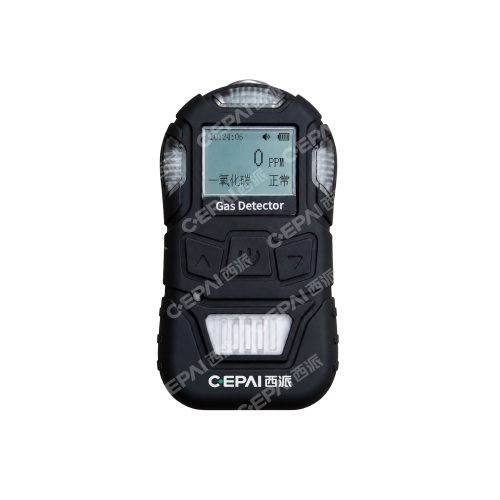

BXYQ-CP10 Portable Gas Detector
| Website Display Field | Recommended Content |
| Product Name | BXYQ-CP10 Portable Gas Detector |
| Product Type | L/C, T/T, D/P |
| Minimum Order | 1 Piece / Piece |
| Transportation | Ocean, Land, Air, Express, Others |
| Port | Shanghai, Ningbo, Huai'an |
| Detectable Gas | Configurable: combustible gas, O2, H2S, CO, CO2 and other toxic gases |
| Explosion Protection | Ex ib IIC T4 Gb, subject to certified configuration |
| Protection Rating | IP66 |
| Attribute | Content |
| Product Name | BXYQ-CP10 Portable Gas Detector |
| Model | BXYQ-CP10 |
| Product Type | Portable configurable gas-safety detector |
| Sampling Method | Natural diffusion |
| Sensor Principle | Electrochemical or catalytic combustion, depending on the selected gas |
| Detectable Gases | Combustible gas, oxygen and selectable toxic gases |
| Measurement Range | Depends on gas and sensor configuration; refer to the selection table |
| Resolution | 1%LEL, 1 ppm, 0.1 ppm or 0.1% vol, depending on configuration |
| Display Error | ≤ ±5% FS |
| Response Time | T90 ≤ 60 s |
| Display | LCD with real-time gas concentration and system status |
| Alarm Modes | Audible, visual and vibration alarms |
| Alarm Functions | Low, high, over-range; STEL and TWA for applicable gases |
| Operating Temperature | -10 to +55 °C |
| Operating Humidity | ≤ 95% RH, non-condensing |
| Power Supply | DC 3.7 V rechargeable lithium battery, 1500 mAh |
| Charging / Runtime | 4-6 h charging; more than 8 h continuous operation |
| Ingress Protection | IP66 |
| Explosion Protection | Ex ib IIC T4 Gb, subject to certificate and configuration |
| Dimensions / Weight | Approximately 109 × 60 × 30 mm; about 130 g excluding accessories |
| Part/Option | Available Material / Configuration |
| Combustible Gas (EX) | 0-100%LEL; optional 0-100% vol infrared; 1%LEL / 1% vol; low 20, high 50 |
| Oxygen (O2) | 0-30% vol; 0.1% vol; low 19.5%, high 23.5% |
| Hydrogen Sulfide (H2S) | 0-100 ppm; optional 0-50/200/1000 ppm; 0.1 or 1 ppm; low 10, high 20 ppm |
| Carbon Monoxide (CO) | 0-1000 ppm; optional 0-500/2000/5000 ppm; 1 ppm; low 50, high 150 ppm |
| Carbon Dioxide (CO2) | 0-5000 ppm; optional 0-1/5/10% vol infrared; 1 ppm / 0.1% vol; low 1000, high 2000 |
| NO / NO2 / SO2 | Selectable ranges to 1000 ppm; 1 or 0.1 ppm resolution; alarm values depend on gas |
| Cl2 / HCl / ClO2 / HCN | Selectable toxic-gas ranges; 0.001-0.1 ppm resolution; configurable alarm thresholds |
| H2 / NH3 / PH3 | Selectable ranges up to 5000/1000/1000 ppm; alarm thresholds depend on gas |
| C2H4O / O3 / CH2O | Selectable low-ppm ranges; 0.1 or 1 ppm resolution; configurable alarms |
| HF / Xylene / Toluene | Selectable ranges to 100 ppm; 0.01 or 0.1 ppm resolution; configurable alarms |
| Field | Recommended Content |
| Selling Units | Piece / Pieces |
| Recommended Package Type | Protective carton and/or export wooden case according to shipment method and project requirements |
| Standard Accessories & Documents | Detector, charger, calibration cap, manual, certificate of conformity and warranty card |
| Delivery Method | Ocean, land, air, express or other agreed method |
