Products
Brand: cepai
Support Customization: Oem
Place Of Origin: China
Medium Temperature: Normal Temperature
Power: Electric, Manual
Flow Medium: Gas, Water, Oil
Structure: Control
Packaging: Box
Transportation: Ocean,Land,Air,Express,others
Port: Shanghai,Ningbo,Huaian
Payment Type: L/C,T/T,D/P
| Working Pressure | 2000 Psi ~ 20,000 Psi |
| Nominal Bore | 1-3/16" ~ 9" (46 mm ~ 230 mm) |
| Working Temperature | -60°C ~ 121°C (KU grade) |
| Material Classes | AA, BB, CC, DD, EE, FF, HH |
| Specification Levels | PSL1 ~ PSL4 |
| Performance Levels | PR1 ~ PR2 |
| Structural Types | FC type, FLS type, FL type |
· Full Bore Design: Effectively eliminates pressure drop and eddy currents, reducing erosion of valve components by solid particles in the fluid.
· Post-Sealing (Behind-the-Seat Sealing): Greatly reduces operating torque during opening/closing.
· HVOF-Sprayed Hard Alloy Sealing Surfaces: Valve seats and discs feature high-velocity oxygen fuel (HVOF) sprayed hard alloy coatings, providing excellent wear and corrosion resistance.
· Back Sealing Structure on Valve Stem: Enables replacement of stem packing under pressure for convenient maintenance.
· Customizable Actuators: Can be equipped with electric, pneumatic, or hydraulic actuators as required by customers.
Product Categories : API Series > API 6A

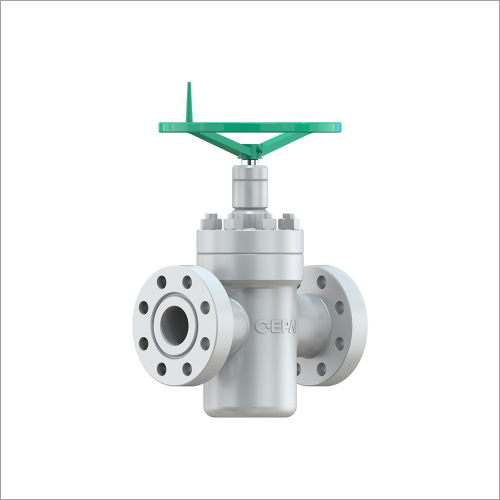

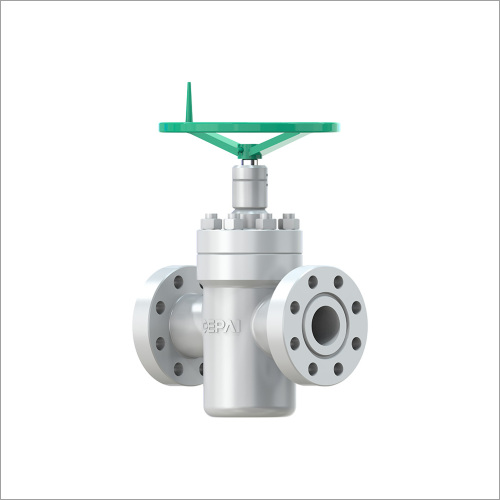

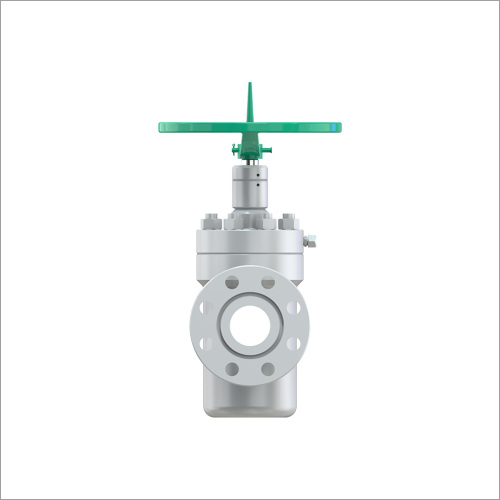

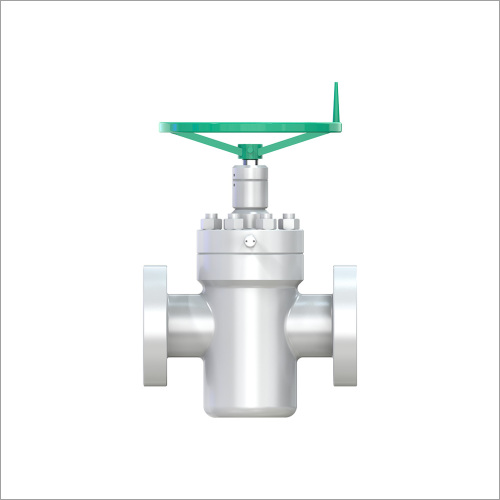

Home > Products > API Series > API 6A > Manual Flat Valve
