Our company mainly produces all kinds of Valve and Flowmeter products, our company's main products are: wellhead, gate valve, ball valve, globe valve, Flowmeter.

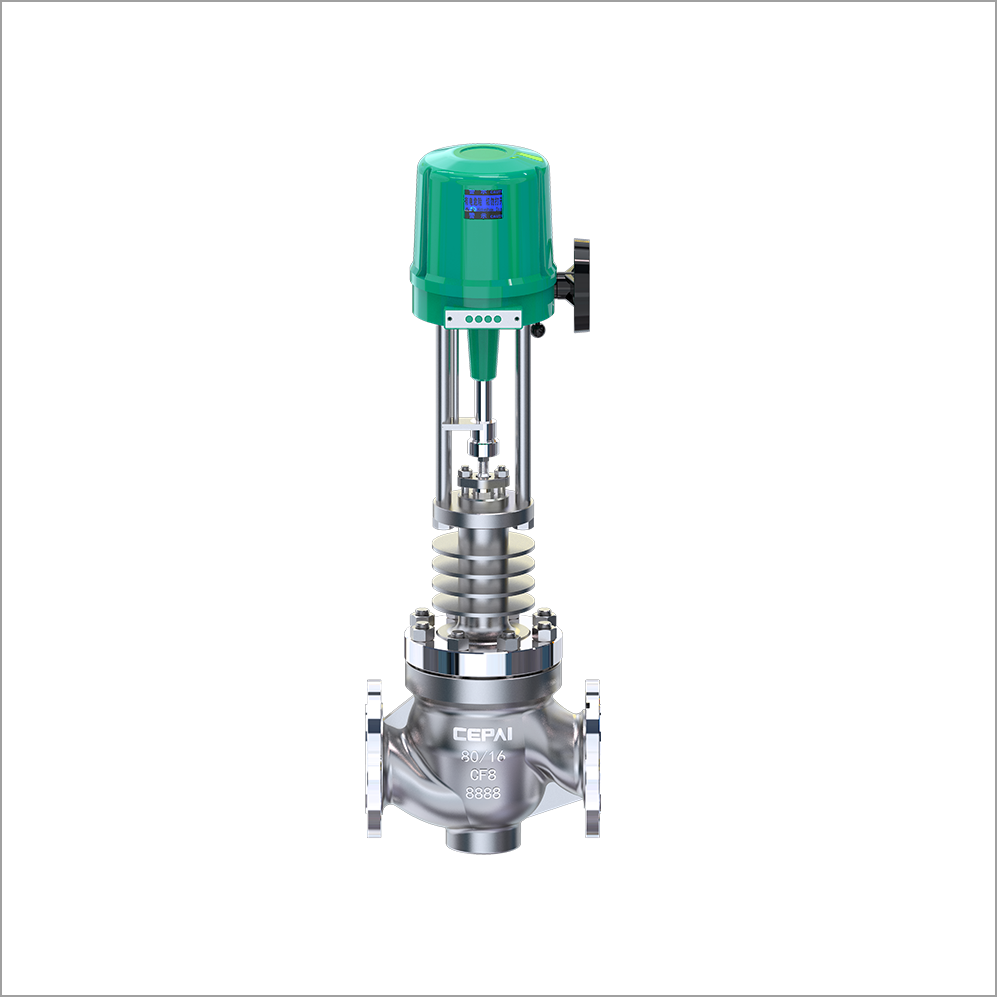

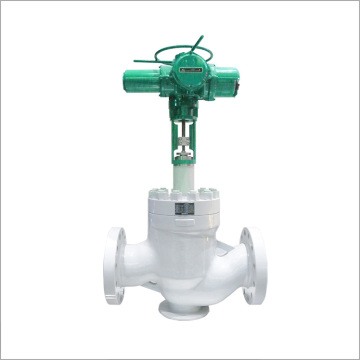

We produce valves and a variety of series, this product is our company's electric High Temperature Control Valve.
The main features of electric high temperature control valve include:
High temperature tolerance: The electric high temperature control valve adopts special materials and structural design, which can withstand the working conditions in high temperature environment to ensure the normal operation of the valve.
Reliability: Using high-quality materials and advanced manufacturing processes, the electric high temperature control valve has good sealing and durability, and can run stably for a long time.
It can automatically adjust the opening of the valve according to the preset temperature value, thus achieving precise control of the fluid temperature.
Valve Body
| Type: | straight-through cage ball valve |
| Nominal diameter: | DN15-400mm |
| Nominal pressure: | PN16, 40, 64; ANSI150, 300, 600 |
| Connection form: | flange type |
| Valve body material: | WCB, WC6, WC9, CF8, CF8M, etc. |
| Valve cover form: | >230℃ (with heat sink) |
| Gland type: | Bolt pressing type |
| Filler: | flexible graphite |
| Valve core form: | pressure balanced valve core |
| Adjustment characteristics: | equal percentage, linear |
| Internal parts materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, etc. |
Executive Agency
| Electric actuator | |
| Model: | Electric actuator |
| Voltage: | 220V, 380V |
| Ambient temperature: | -30-+70℃ |
| Control signal: | 4-20mADC (4-20mA signal feedback can be provided according to customer requirements) |
Performance
| Leakage amount: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B 16.104 Class VI Accessories (configured upon request) Positioner, filter pressure reducing valve, hand wheel mechanism, limit switch, solenoid valve, valve position transmitter, air control valve,speed increaser, position keeping valve, etc. |
Product Categories : Instrument Valve > Electric Control Valve
