Products
Brand: Cepai
Types Of: Globe Valves, Float Valves
Support Customization: Oem
Place Of Origin: China
Medium Temperature: Normal Temperature
Flow Medium: Gas, Water
Structure: Control
Power: Electric, Manual
Packaging: Box
Transportation: Ocean,Land,Air,Express,others
Port: Shanghai,Ningbo,Huaian
Payment Type: L/C,T/T,D/P

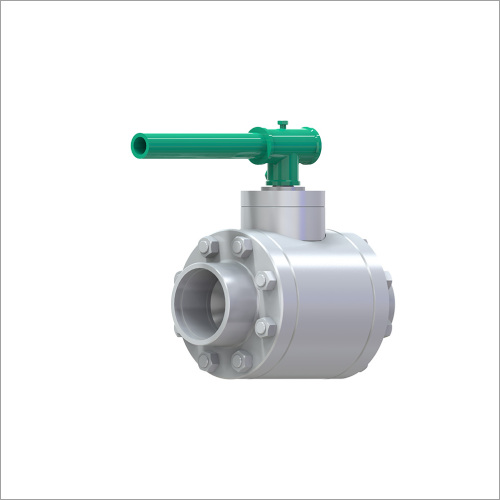

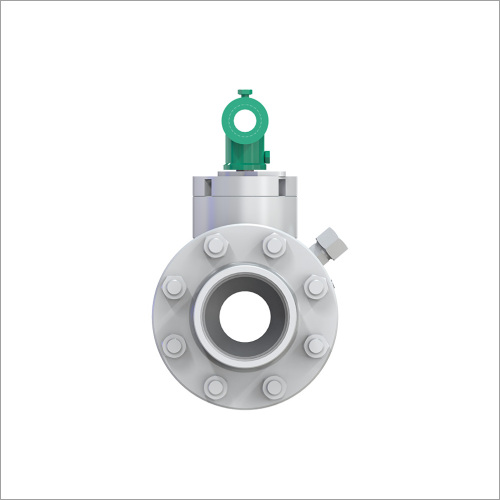

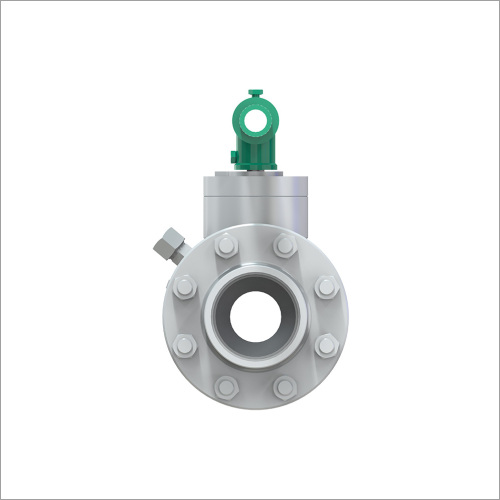

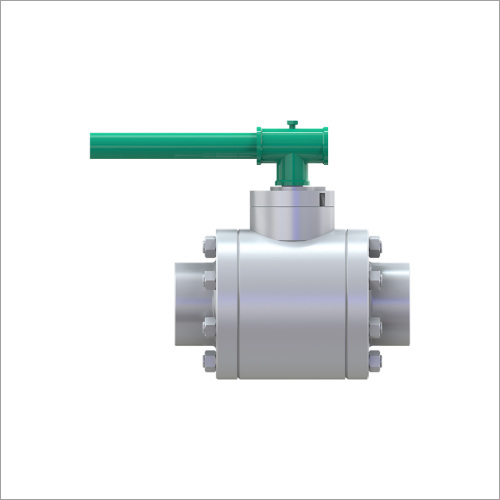

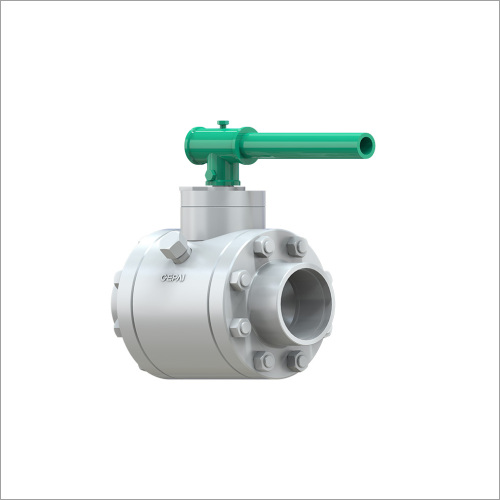

Floating ball valves are mainly used in some small diameter pipelines, through operating the ball valve handle to connect or cut off the pipeline medium. And they are widely used in petroleum, chemical, natural gas, electricity, metallurgy, food, pharmaceutical and other occasions requiring tight cutting
. Test/Test Standard
1．Test Standard: API 6D and API 598.
2．Test Medium: Water or gas.
. Main Technology/Construction Features1．Two pieces valve body, floating ball design, compact structure, lightweight, and easy to assemble.
2．Non-metal seal with "O" sealing ring, easy to install, good sealing performance.
3．The valve body, ball and stem adopt forged materials, and the valve seat is made of non-metal soft sealing materials (such as PTFE, RPTFE, PEEK, etc.), which relies on the medium force to push the ball to press the valve seat to achieve reliable sealing.
4．Anti-blow out valve stem, anti-static structure and fireproof design.
5．The valve is equipped with a padlock and an open/close position status indicator device.
6．According to the working condition requirements,the interior can be welded with corrosion-resistant materials to help reduce manufacturing costs and extend the service life of the valve.
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.| Production Name | Floating Ball Valve |
| Design Standard | API 6D、ISO 17292 |
| Rated Pressure | 150LB、300LB、600LB、900LB、1500LB、2500LB |
| Nominal Size | NPS1/2”~NPS6”（DN15~DN150） |
| End Connection Type | Flange; BW,etc. |
| Operating Mode | Handle, Gear box, Electric,etc. |
| Sealing Material | LIP SEAL, VITON/HNBR, Flexible Graphite, Spiral Wound Gasket |
| Common Valve body Material | A105/WCB、F316/CF8M、LF2/LCB、A182 F51、A182 F53、B564 N06625,etc. |
Product Categories : API Series > API 6D
Home > Products > API Series > API 6D > Floating Ball Valve
