Products
Brand: cepai
Types Of: Ball Valves
Support Customization: Oem
Medium Temperature: Normal Temperature
Power: Manual, Electric
Flow Medium: Gas, Water, Oil
Structure: Control
Place Of Origin: China
Packaging: Box
Transportation: Ocean,Land,Air,Express,others
Port: Shanghai,Ningbo,Huaian
Payment Type: L/C,T/T,D/P
Trunnion Ball Valves feature large flow capacity, compact structure, good sealing performance and long service life. They are cost-effective, easy to maintain, and widely used in industries such as petroleum, chemical engineering, natural gas, power, metallurgy, food, and pharmaceuticals, where strict shut-off is required.
1．Test Standard: API 6D.
2．Test Medium:Water or gas.
1．Ball valves adopts side entry trunnion ball structure,which are compact, lightweight, easy to install and maintain, and has a small switching torque.
2．The sealing areas of the valve seat hole and the valve stem hole are overlaying with CRA material, and the main sealing elements use LIP SEAL elastic energy storage rings, enabling the valve to be used for a long time in highly corrosive conditions.
3．The valve stem is designed with a anti-blowout structure.
4．The valve meets the requirements of fire-safe and anti-static design.
5．The valve is equipped with a padlock and an open/close position status indicator device.
6．The pressure-bearing and pressure-control components of the valve are analyzed by finite element stress analysis, and the overall strength is optimized. Meanwhile, the machining accuracy of each sealing component is high, meeting the requirements of high-pressure gas tightness testing.
Our company’s main products include Pneumatic Control Valve、Pneumatic ball valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
|

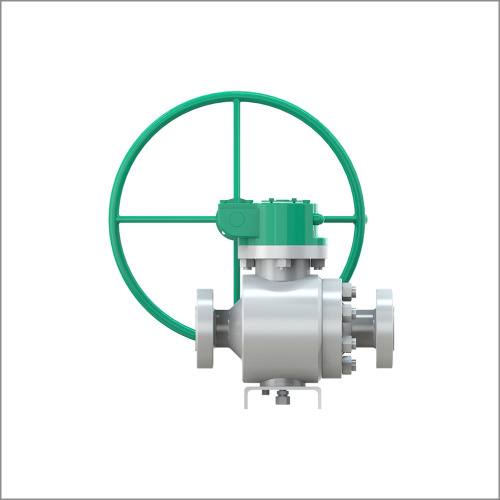

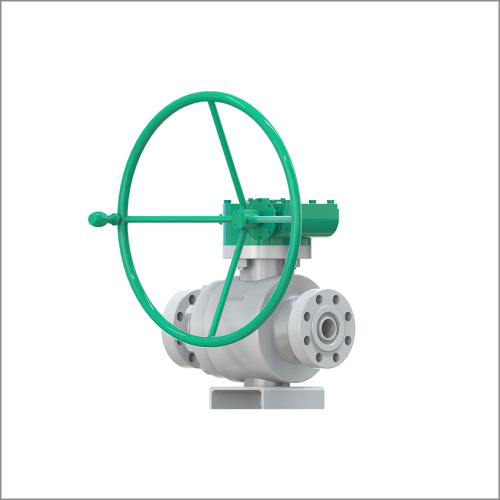

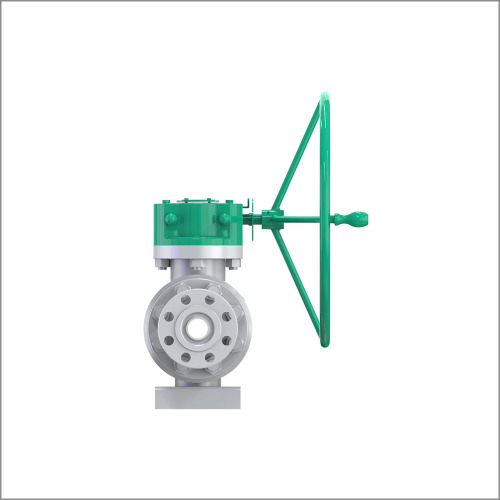

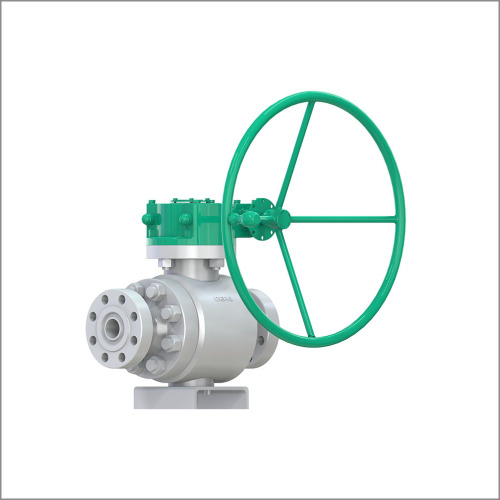

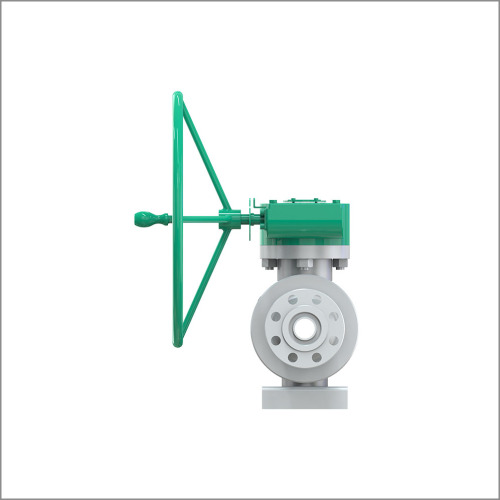

Production Name | Side Entry Trunnion Ball Valve |
| Design Standard | API 6D |
| Rated Pressure | 150LB、300LB、600LB、900LB、1500LB、2500LB |
| Nominal Size: | NPS2”~NPS48”（DN50~DN1200） |
| End Connection Type | Flange, BW, etc |
| Operating Mode: | Handle, Gear box, Electric, Pneumatic,Hydraulic |
| Sealing Material: | LIP SEAL, VITON/HNBR, Flexible Graphite, Spiral Wound Gasket |
| Common Valve Body Material | A105/WCB、F316/CF8M、LF2/LCB、A182 F51、A182 F53、B564 N06625,etc |
Product Categories : API Series > API 6D
