Brand: cepai
Types Of: Needle Valves
Support Customization: Oem
Place Of Origin: China
Medium Temperature: Normal Temperature
Power: Electric, Manual
Flow Medium: Gas, Water, Oil
Structure: Control
Packaging: Box
Transportation: Ocean,Land,Air,Express,others
Port: Shanghai,Ningbo,Huaian
Payment Type: T/T,L/C,D/P

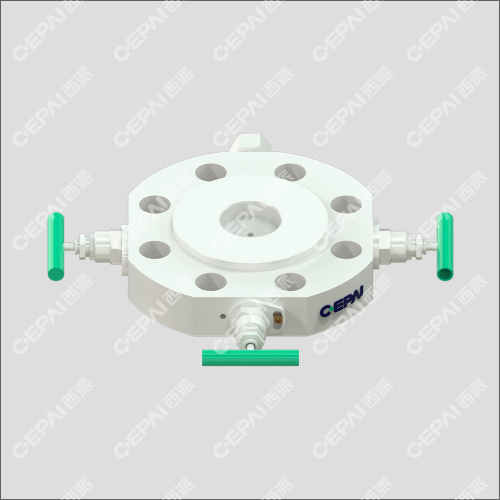

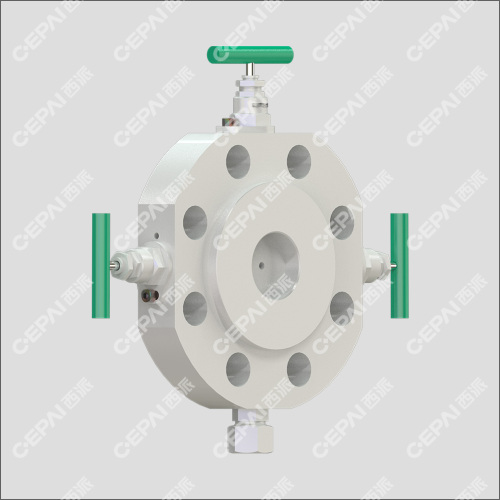

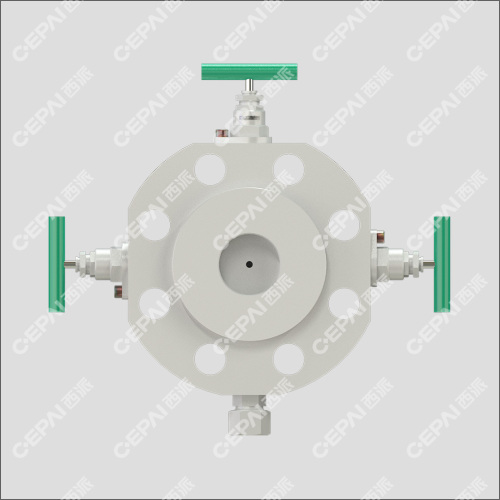

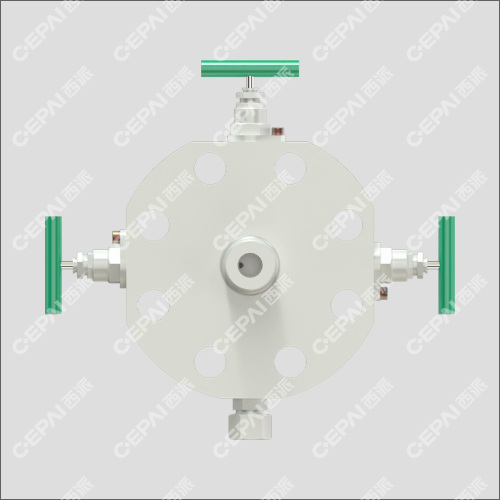

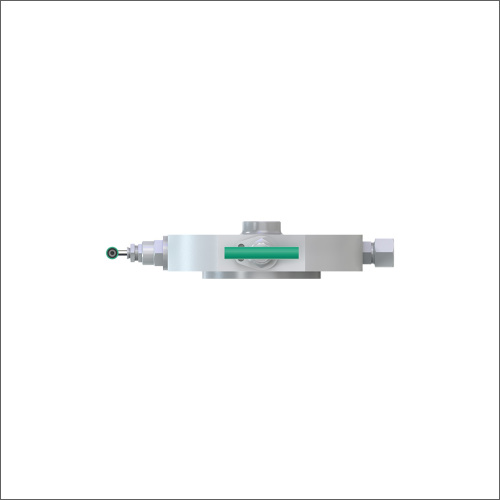

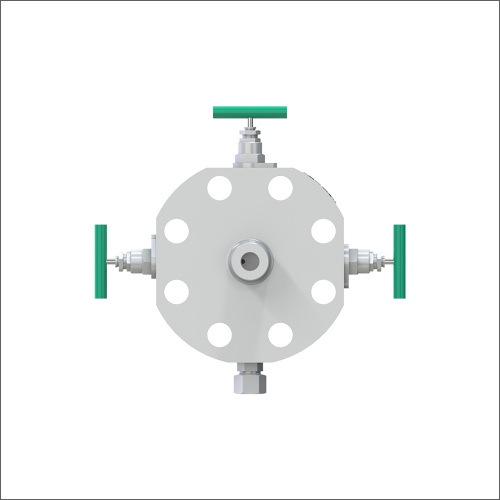

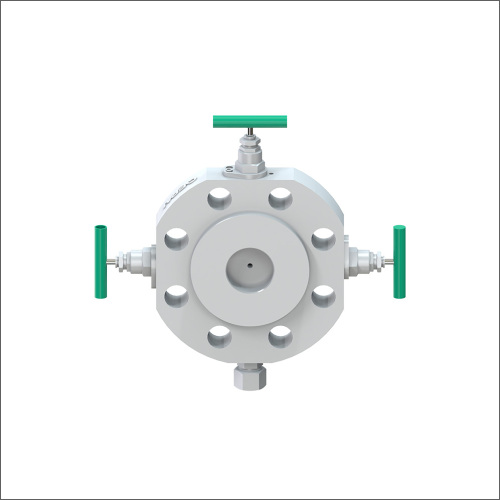

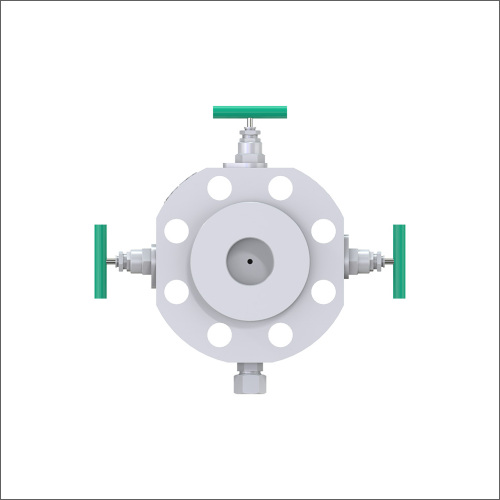

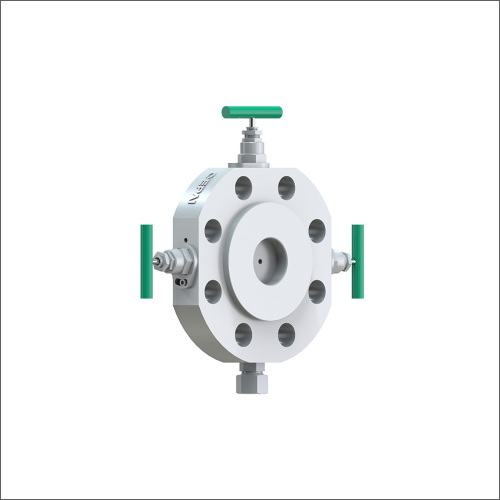

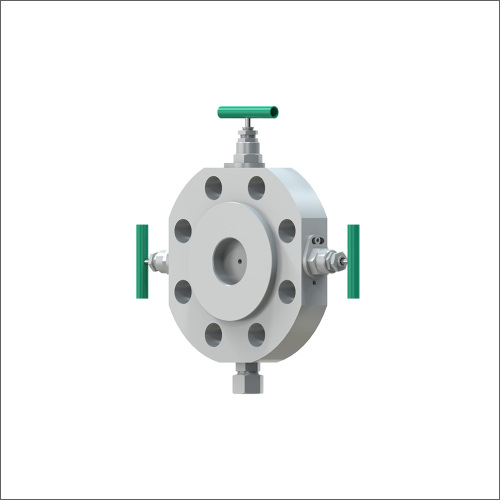

DBB MONOFLANGE Needle Valve is mainly used in petroleum, refining, metallurgy and chemical pipeline for pressure measurement, sampling and other functions.
1．Test Standard: API 598.
2．Test Medium: Water or gas.
. Main Technology/Construction Features1．MONOFLANGE,DBB function design, compact structure, light weight, and small switching torque.
2．Adopting the design of main valve + auxiliary valves. The main valve can shut off all outlets, and two auxiliary valves respectively control the outlet end and the discharge end.
3．Using LIP SEAL sealing ring. The LIP SEAL sealing ring has excellent corrosion resistance, temperature resistance and anti-aging life. At the same time, it reduces the operating torque of the valve by approximately 1/2.
4．The valve needle and valve seat sealing surface are made of STL hard alloy, with a surface hardness not lower than HRC38. It can resist the high-pressure medium erosion from the pipeline containing particles and can be used online for a long time.
Our company’s main products include Pneumatic Control Valve、Pneumatic ball valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
| Production Name | DBB MONOFLANGE Needle Valve |
| Design Standard | EEMUA 182 |
| Rated Pressure | 150LB、300LB、600LB、900LB、1500LB、2500LB |
| Nominal Size | NPS1/2”~NPS4”（DN15~DN00） |
| End Connection Type | Flange; screw,etc |
| Operating Mode | Handle |
| Sealing Material | LIP SEAL, VITON/HNBR, Flexible Graphite, Spiral Wound Gasket |
| Nominal Size | RF/RTJx1/2NPT（import x export） |
| Common Valve body Material | A105、F316、LF2、A182 F51、A182 F53、B564 N06625,etc |
