Products
Brand: cepai
Types Of: Metal Check Valves
Support Customization: Oem
Place Of Origin: China
Medium Temperature: Normal Temperature
Power: Electric, Manual
Flow Medium: Gas, Oil, Water
Structure: Control
Packaging: Box
Transportation: Ocean,Land,Air,Express,others
Port: Shanghai,Ningbo,Huaian
Payment Type: L/C,T/T,D/P

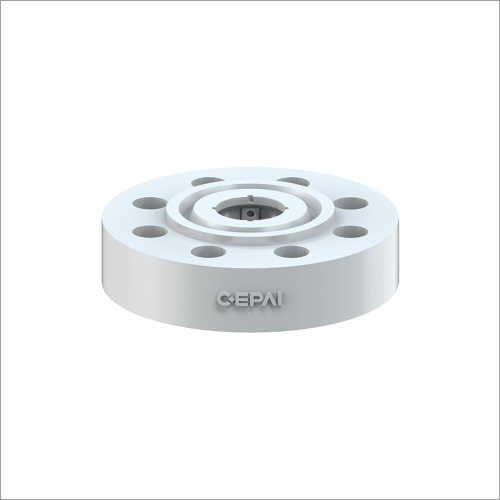

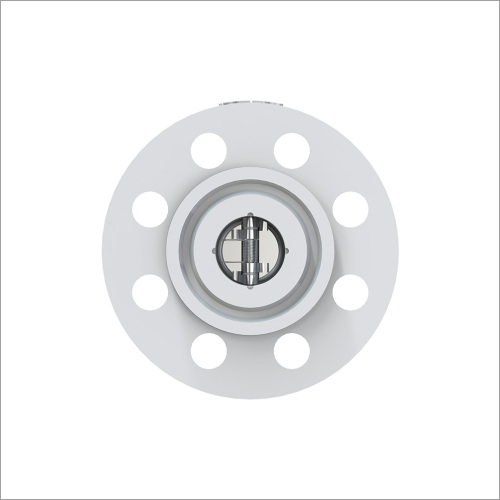

Dual Plate Check Valve is an automatic valve designed to prevent the backflow of medium, its main principle is to utilize the reverse flow of the medium fluid to push the valve disc to close, thereby achieving the purpose of preventing the backflow of medium, which is widely used in petroleum, chemical, natural gas, electric power, metallurgy and other required occasions.
1．Test Standard: API 598.
2．Test Medium:Water or gas.
. Main Technology/Construction Features1．Valves adopt an internal structure without any external leakage points.
2．The wall thickness of the valve body can be customized according to user requirements, and it can meet the maximum corrosion resistance of 6mm working conditions.
3．The sealing surfaces of the valve disc and valve seat are welded with STL alloy, which has strong resistance to medium erosion.
4．For valves larger than 4 inches, each valve disc is designed with an independent spring preload to ensure reliable sealing and a leakage rate that can meet the requirements of ISO 5208 CLASS B or lower leakage levels.
5．The valve is designed with lifting lugs, facilitating the lifting of the valves.
Our company’s main products include Pneumatic Control Valve、Pneumatic ball valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
VALVE BODY| Production Name | Dual Plate check valve |
| Design Standard | API 594 |
| Rated Pressure | 150LB、300LB、600LB、900LB、1500LB、2500LB |
| Nominal Size | NPS2”~NPS48”（DN50~DN1200） |
| End Connection Type | Flange; BW, etc |
| Common Valve body Material | WCB、LCB、CF3、CF8、CF3M、CF8M、WC6、C5、4A、5A、6A、CW6MC,etc |
Product Categories : API Series > API 6D
Home > Products > API Series > API 6D > Dual Plate Check Valve
