Brand: cepai
Types Of: Metal Check Valves
Support Customization: Oem
Place Of Origin: China
Medium Temperature: Normal Temperature
Power: Electric, Manual
Structure: Control
Packaging: Box
Transportation: Ocean,Air,Express,others
Port: Shanghai,Ningbo,Huaian
Payment Type: L/C,T/T,D/P
1．Test Standard: API6D、API 598.
2．Test Medium: Water or gas.
. Main Technology/Construction Features1．Valves adopt BB structure design. For high-pressure valves, the self-pressurized sealing structure design can be adopted according to customer requirements, which can meet the needs of various working conditions.
2．The wall thickness of the valve body can be customized according to user requirements, and it can meet the maximum corrosion resistance of 6mm working conditions.
3．The sealing surfaces of the valve disc and valve seat are welded with STL alloy, which has strong resistance to medium erosion.

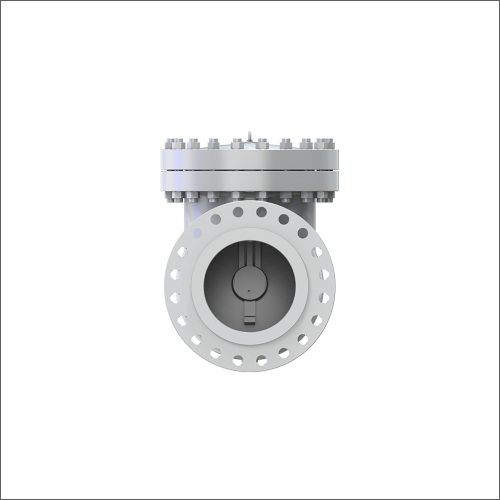

4．The valve disc adopts a swing structure, which can be flexibly opened by the force of the medium.Relying on its own gravity in reverse, it can be closed quickly.
5．The valve body and bonnet adopt the design of sealing with spiral gaskets or metal gasket rings, which can meet the requirements of various special working conditions with low leakage.
6．Valves of 250KG or 8 inches and above are designed with lifting lugs, facilitating the lifting of the valves.
Our company’s main products include Pneumatic Control Valve、Pneumatic ball valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.

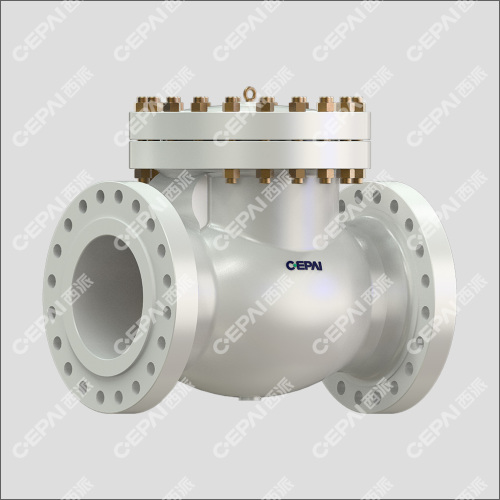

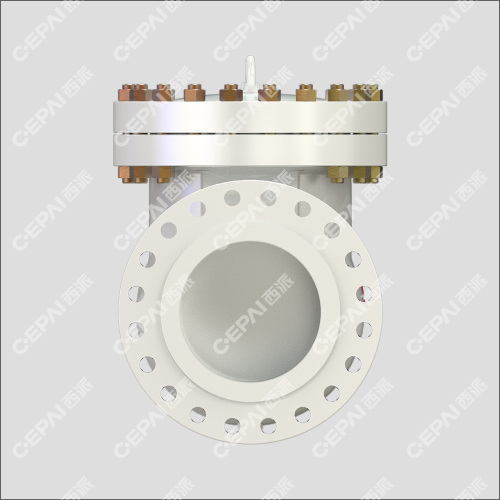

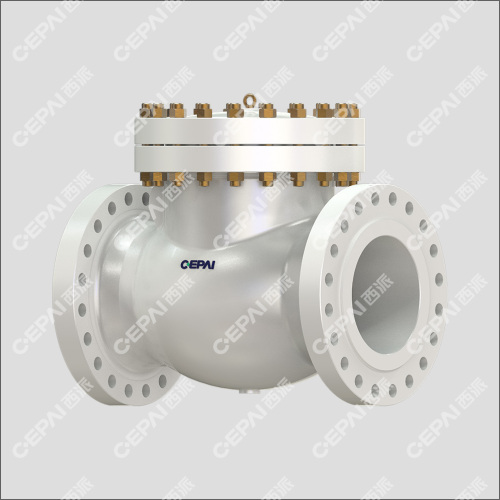

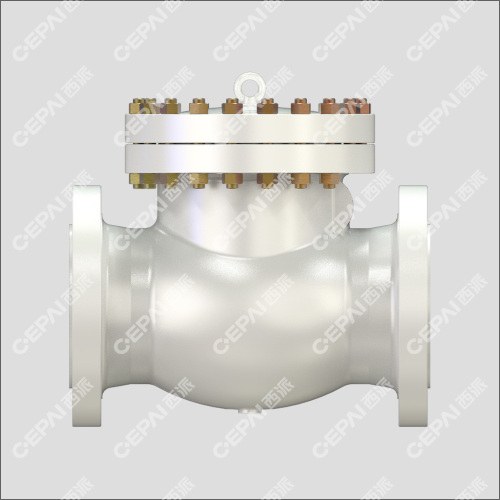

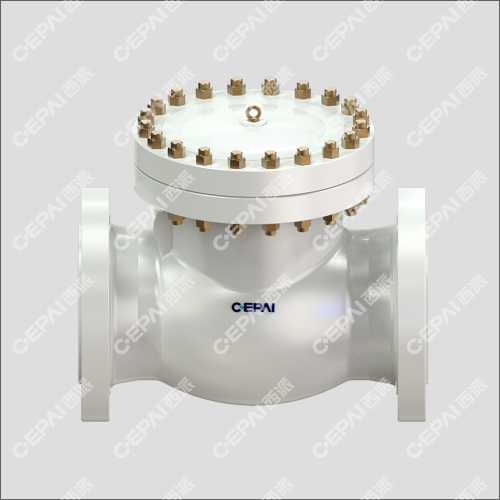

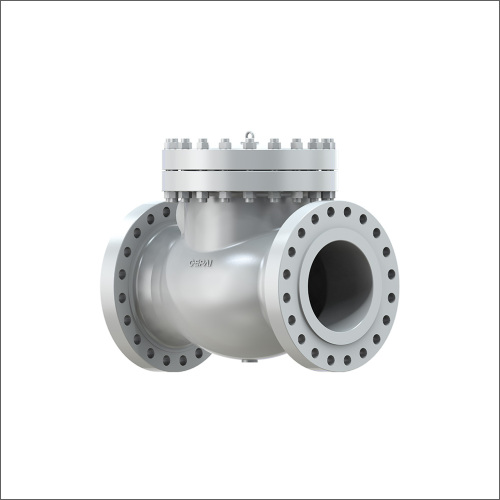

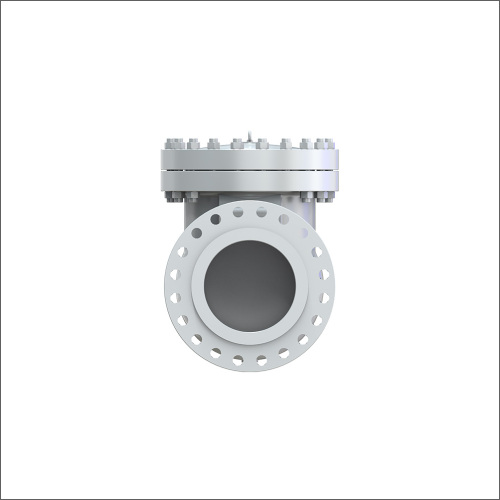

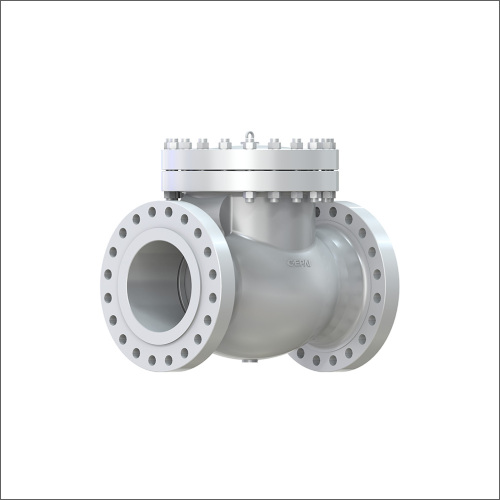

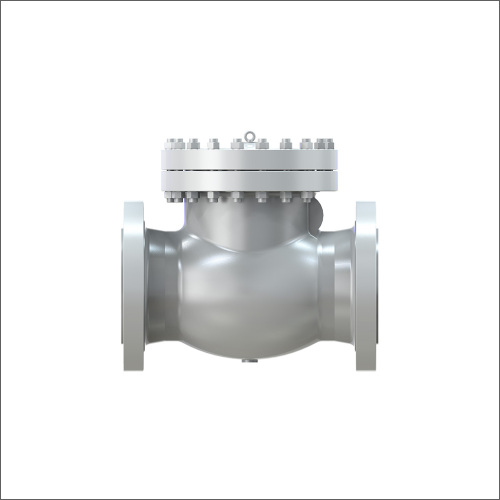

VALVE BODY| Production Name | Casting Swing Check Valve |
| Design Standard | API 6D、BS1868 |
| Rated Pressure | 150LB、300LB、600LB、900LB、1500LB、2500LB |
| Nominal Size | NPS2”~NPS24”（DN50~DN600） |
| End Connection Type | Flange; BW,etc |
| Sealing Material | Spiral Wound Gasket |
| Common Valve body Material | WCB、LCB、CF3、CF8、CF3M、CF8M、WC6、C5、4A、5A、6A、CW6MC,etc |
