Brand: cepai
Types Of: Globe Valves
Support Customization: Oem
Place Of Origin: China
Medium Temperature: Normal Temperature
Power: Electric, Manual
Flow Medium: Gas, Water, Oil
Structure: Control
Packaging: Box
Transportation: Ocean,Land,Air,Express,others
Port: Shanghai,Ningbo,Huaian
Payment Type: L/C,T/T,D/P
1．Test Standard: API 598.
2．Test Medium: Water or gas.
. Main Technology/Construction Features1．Valves adopt OS & Y & BB structure design. For high-pressure valves, the self-pressurized sealing structure design can be adopted according to customer requirements, which can meet the needs of various working conditions.
2．The wall thickness of the valve body can be customized according to user requirements, and it can meet the maximum corrosion resistance of 6mm working conditions.
3．The sealing surfaces of the valve disc and valve seat are welded with STL alloy, which has strong resistance to medium erosion.
4．The valve disc is equipped with a guiding device, which enables it to be opened flexibly under high pressure, and achieve "zero leakage".
5．The packing of valve stems is designed with low leakage structure, which can meet the needs of various special working conditions with low leakage requirements.
6．The valve is equipped with a padlock and an open/close position status indicator device.
Our company’s main products include Pneumatic Control Valve、Pneumatic ball valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
VALVE BODY

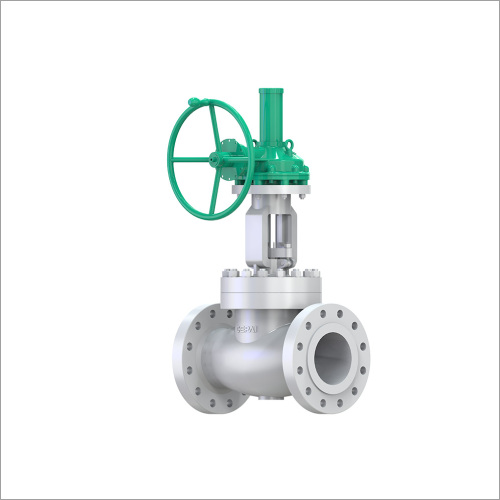

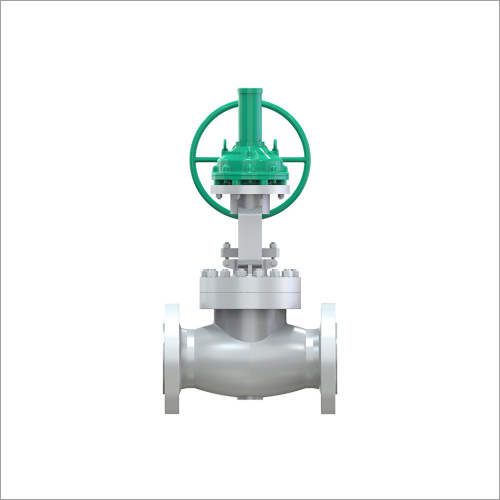

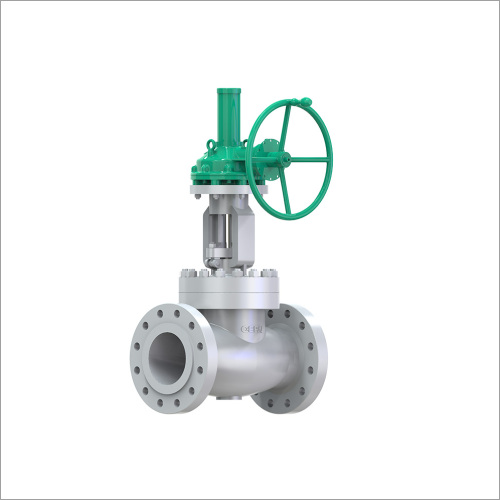

| Production Name | Casting Globe Valve |
| Design Standard | BS1873 |
| Rated Pressure | 150LB、300LB、600LB、900LB、1500LB、2500LB |
| Nominal Size | NPS2”~NPS24”（DN50~DN600） |
| End Connection Type | BW,etc |
| Operating Mode | Handwheel, Gear box, Electric,etc |
| Sealing Material | Flexible Graphite, Spiral Wound Gasket |
| Common Valve body Material | WCB、LCB、CF3、CF8、CF3M、CF8M、WC6、C5、4A、5A、6A、CW6MC,etc |
